Dehn HVI Power Conductor D 27mm Cu Black With Connection Elements - 819165

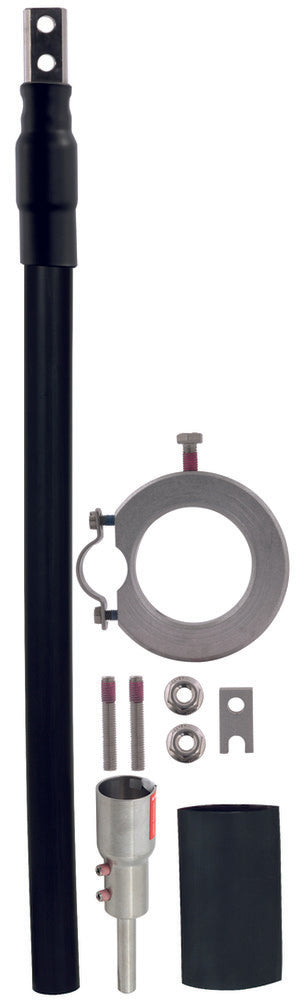

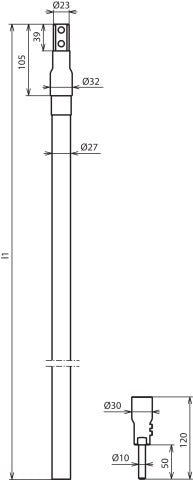

The Dehn HVI Power round conductor for lightning protection is a black, high-voltage-resistant, insulated down conductor with a conductor cross-section of 25mm². The conductor material is copper and features a class 2 construction made up of compressed wires. It is covered with an XLPE (VPE) sheath and has a nominal conductor diameter of 5.6mm made up of 7 strands. This conductor helps maintain the separation distance from conductive parts as per IEC/EN 62305-3 to avoid dangerous flashovers between the external lightning protection system and interior conductive parts. It has a unique outer sheath for discharging high lightning impulse voltages to a reference potential and comes pre-assembled with a headpiece and connection element. The minimum separation should be ≤ 90 cm in air and ≤ 180 cm in solid material.
- Regular price
- £833.37
Description
The Dehn HVI Power round conductor for lightning protection is a black, high-voltage-resistant, insulated down conductor with a conductor cross-section of 25mm². The conductor material is copper and features a class 2 construction made up of compressed wires. It is covered with an XLPE (VPE) sheath and has a nominal conductor diameter of 5.6mm made up of 7 strands. This conductor helps maintain the separation distance from conductive parts as per IEC/EN 62305-3 to avoid dangerous flashovers between the external lightning protection system and interior conductive parts. It has a unique outer sheath for discharging high lightning impulse voltages to a reference potential and comes pre-assembled with a headpiece and connection element. The minimum separation should be ≤ 90 cm in air and ≤ 180 cm in solid material.
