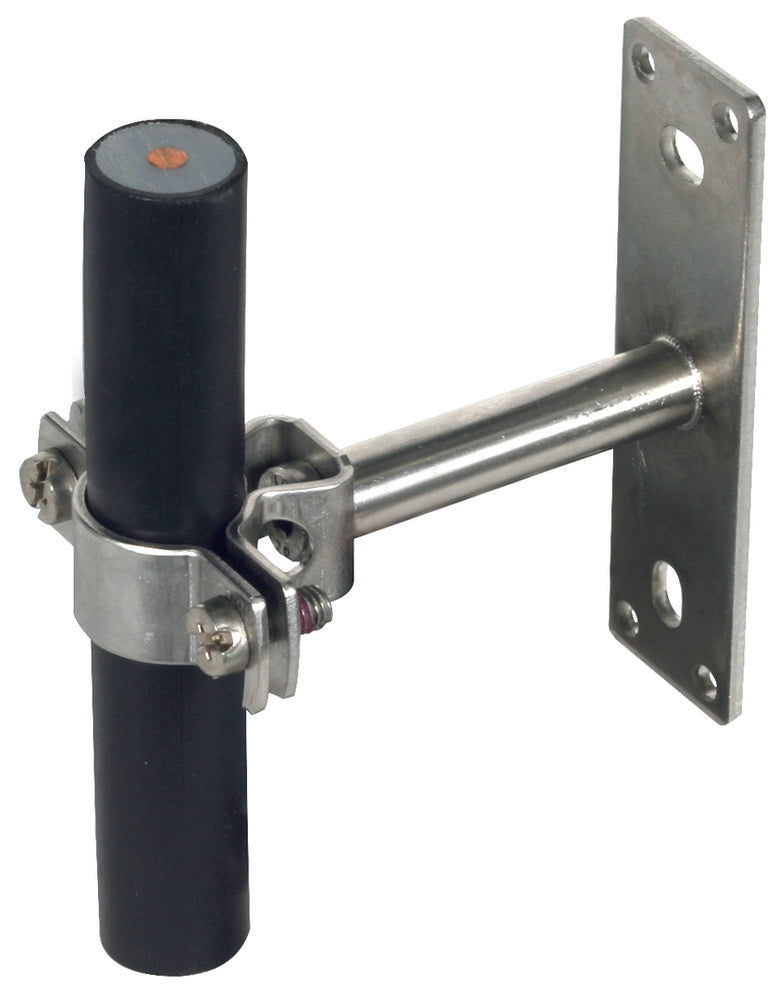

Dehn HVI W70 Ex Conductor Holder 20mm Distance 70mm - 275440 [10 Pieces]

Dehn HVI W70 Ex Conductor Holder 20mm Distance 70mm - 275440 [10 Pieces]
Dehn HVI W70 Ex Conductor Holder 20mm Distance 70mm - 275440 [10 Pieces]
Dehn HVI W70 Ex Conductor Holder 20mm Distance 70mm - 275440 [10 Pieces]
Dehn HVI W70 Ex Conductor Holder 20mm Distance 70mm - 275440 [10 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3PGA-X10
Brand: DEHN
Mfr. Part: 275440

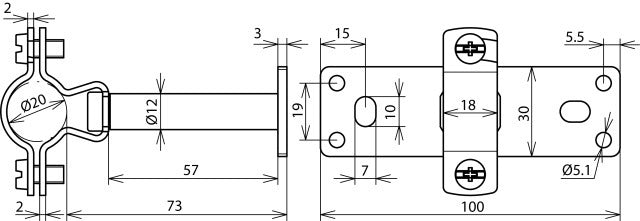

The Dehn HVI Conductor holder is designed for the installation of the HVI Conductor in areas at risk of explosion such as Ex Zone 1 (gases, vapours, mists) and Ex Zone 21 (dusts). With a building height of 16mm, it is equipped with a screw terminal for conductor attachment and a boring fixation method for holder attachment. The unit also features a spacer sleeve of 70mm for fixing on metal structures like facades. Suitable for a round conductor diameter of 20mm, it is made from Stainless steel type 304 (V2A) for the bottom part, carrier and holder. The specific installation conditions safely prevent electrical sparks from neighbouring metal parts when lighting current flows through the HVI Conductor.

Contains 10 pieces

View all
Note: product cannot be returned
£302.77
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00 (excl VAT)
Expected delivery in 13 - 14 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications

Description

The Dehn HVI Conductor holder is designed for the installation of the HVI Conductor in areas at risk of explosion such as Ex Zone 1 (gases, vapours, mists) and Ex Zone 21 (dusts). With a building height of 16mm, it is equipped with a screw terminal for conductor attachment and a boring fixation method for holder attachment. The unit also features a spacer sleeve of 70mm for fixing on metal structures like facades. Suitable for a round conductor diameter of 20mm, it is made from Stainless steel type 304 (V2A) for the bottom part, carrier and holder. The specific installation conditions safely prevent electrical sparks from neighbouring metal parts when lighting current flows through the HVI Conductor.

Contains 10 pieces

Specifications
