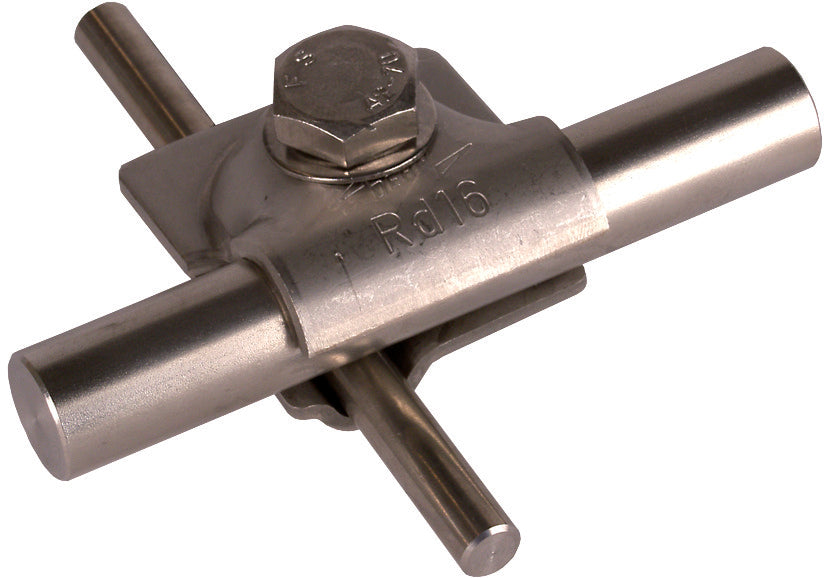

Dehn MV Clamp 8-10/16mm Stainless Steel With Hexagon Screw - 392059
This is a Dehn MV connector for lightning protection, made of stainless steel 304 (V2A). It can establish T-, cross, or parallel connections, suitable for round conductors with diameters of 8-10mm and 16mm respectively. It does not have any surface protection and remains untreated. The fixture utilizes a hexagonal screw for attachment. It possesses a lightning current carrying capacity of 10/350 µs 100kA. According to EN 62561-1, this rod clamp is for connecting air-termination rods Rd 16mm to round conductors. Equipped with a hexagon screw, spring washer and thread in the base part, it is ideal for longitudinal or cross connections.
- Regular price
- £8.58
Description
This is a Dehn MV connector for lightning protection, made of stainless steel 304 (V2A). It can establish T-, cross, or parallel connections, suitable for round conductors with diameters of 8-10mm and 16mm respectively. It does not have any surface protection and remains untreated. The fixture utilizes a hexagonal screw for attachment. It possesses a lightning current carrying capacity of 10/350 µs 100kA. According to EN 62561-1, this rod clamp is for connecting air-termination rods Rd 16mm to round conductors. Equipped with a hexagon screw, spring washer and thread in the base part, it is ideal for longitudinal or cross connections.
