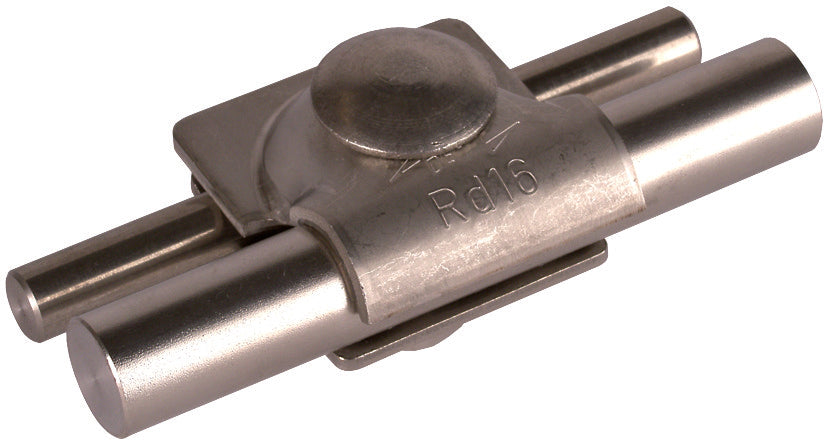

Dehn MV Clamp StSt For RD With Truss Head Screw And Nut - 392069
Notice: This product will be discontinued in the future
This is a Dehn MV connector for lightning protection, made of stainless steel 304 (V2A). It has a T-/cross-/parallel plug connection type, with a 1st round conductor diameter of 8-10mm and a 2nd round conductor diameter of 16mm. It does not have surface protection (untreated). Additionally, it comes with non-standard fastening screws and possesses a lightning current carrying capacity of (10/350 µs) 100kA. It also functions as a rod clamp according to EN 62561-1, designed for connecting air-termination rods of 16mm diameter to round conductors. This clamp comes along with a truss head screw and anti-rotation protection and supports both longitudinal or cross connection.
Notice: This product will be discontinued in the future
Description
This is a Dehn MV connector for lightning protection, made of stainless steel 304 (V2A). It has a T-/cross-/parallel plug connection type, with a 1st round conductor diameter of 8-10mm and a 2nd round conductor diameter of 16mm. It does not have surface protection (untreated). Additionally, it comes with non-standard fastening screws and possesses a lightning current carrying capacity of (10/350 µs) 100kA. It also functions as a rod clamp according to EN 62561-1, designed for connecting air-termination rods of 16mm diameter to round conductors. This clamp comes along with a truss head screw and anti-rotation protection and supports both longitudinal or cross connection.
