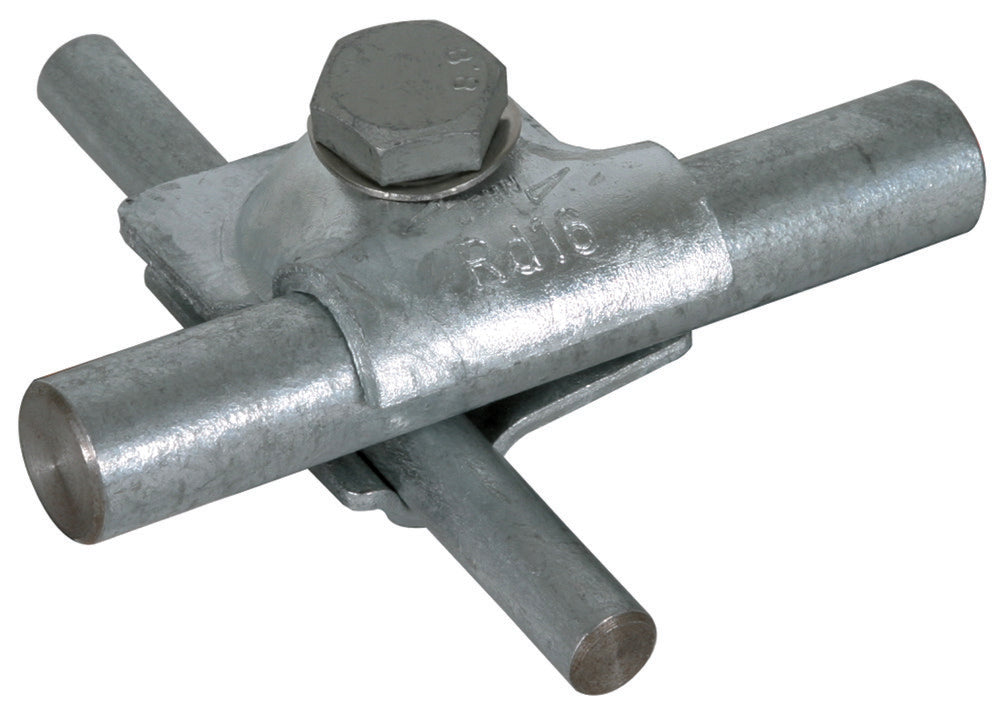

Dehn MV Clamp With Hexagon Screw And Spring Washer - 392050 [2 pieces]
![Dehn MV Clamp With Hexagon Screw And Spring Washer - 392050 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf8-00.31c7b167.jpg?v=1730382619)
![Dehn MV Clamp With Hexagon Screw And Spring Washer - 392050 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf8-01.e2f4c606.jpg?v=1730382620)
![Dehn MV Clamp With Hexagon Screw And Spring Washer - 392050 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf8-00.31c7b167.jpg?height=232&v=1730382619&width=232)
![Dehn MV Clamp With Hexagon Screw And Spring Washer - 392050 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf8-01.e2f4c606.jpg?height=232&v=1730382620&width=232)
The Dehn MV connector is designed for lightning protection and made of steel. It features a T, cross, and parallel plug type connection and can accommodate a round conductor with a diameter between 8 and 10mm and a second round conductor of 16mm. The surface protection is thermally galvanized, and it features hexagonal fixing screws. This connector has a lightning current carrying capacity of 10/350 µs 100kA. It's a rod clamp as per the EN 62561-1 standard, suitable for connecting air-termination rods Rd 16mm to round conductors, equipped with a hexagon screw, spring washer, and thread in the base part, for either longitudinal or cross connection.
Contains 2 pieces
- Regular price
- £7.53
Description
The Dehn MV connector is designed for lightning protection and made of steel. It features a T, cross, and parallel plug type connection and can accommodate a round conductor with a diameter between 8 and 10mm and a second round conductor of 16mm. The surface protection is thermally galvanized, and it features hexagonal fixing screws. This connector has a lightning current carrying capacity of 10/350 µs 100kA. It's a rod clamp as per the EN 62561-1 standard, suitable for connecting air-termination rods Rd 16mm to round conductors, equipped with a hexagon screw, spring washer, and thread in the base part, for either longitudinal or cross connection.
