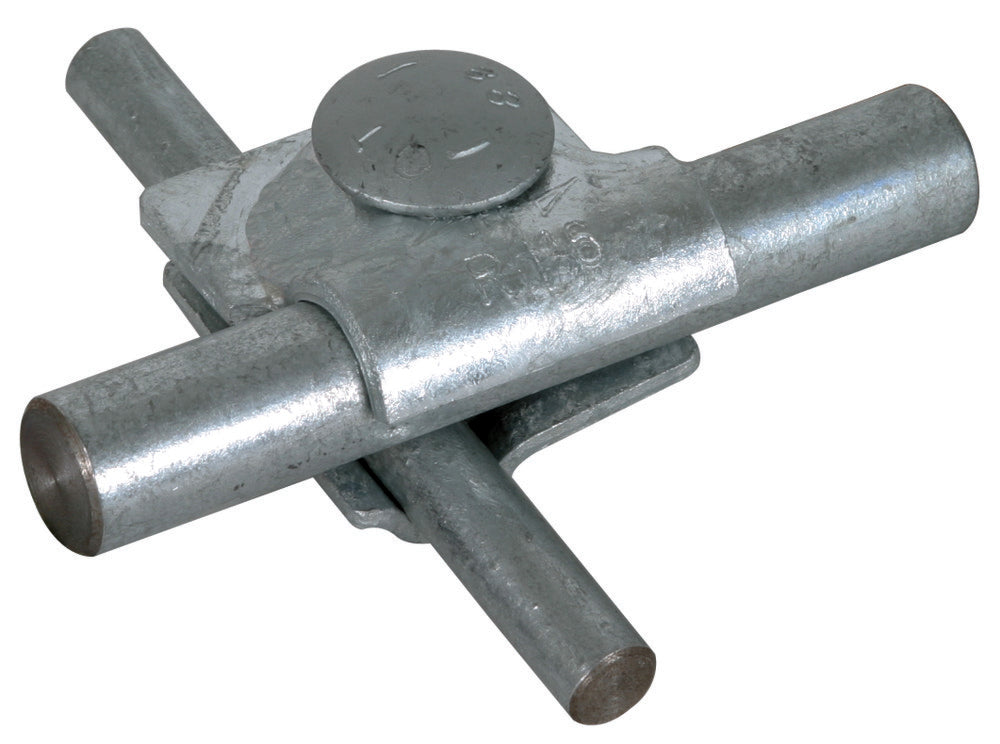

Dehn MV Clamp With Truss Head Screw And Nut 8-10/16mm - 392060 [2 pieces]
![Dehn MV Clamp With Truss Head Screw And Nut 8-10/16mm - 392060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf9-00.0560d60a_e4e94933-21fd-4779-bce2-cdf43da0ebda.jpg?v=1730382630)
![Dehn MV Clamp With Truss Head Screw And Nut 8-10/16mm - 392060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf9-01.8c712ac4.jpg?v=1730382631)
![Dehn MV Clamp With Truss Head Screw And Nut 8-10/16mm - 392060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf9-00.0560d60a_e4e94933-21fd-4779-bce2-cdf43da0ebda.jpg?height=232&v=1730382630&width=232)
![Dehn MV Clamp With Truss Head Screw And Nut 8-10/16mm - 392060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nf9-01.8c712ac4.jpg?height=232&v=1730382631&width=232)
The Dehn MV connector for lightning protection is made of steel, featuring a T/cross/parallel connection. The connector's round conductor 1 has a diameter ranging between 8-10mm, while its second round conductor has a diameter of 16mm. The surface protection of the connector is thermally galvanized. The connector includes an additional type of fixing screws and has a lightning current-carrying capacity of 10/350 µs 100kA. Additionally, the Dehn MV connector adheres to the EN 62561-1 standard for connecting air-termination rods of 16mm to round conductors. It comes with a truss head screw and anti-rotation protection, usable for longitudinal or cross connection.
Contains 2 pieces
- Regular price
- £9.46
Description
The Dehn MV connector for lightning protection is made of steel, featuring a T/cross/parallel connection. The connector's round conductor 1 has a diameter ranging between 8-10mm, while its second round conductor has a diameter of 16mm. The surface protection of the connector is thermally galvanized. The connector includes an additional type of fixing screws and has a lightning current-carrying capacity of 10/350 µs 100kA. Additionally, the Dehn MV connector adheres to the EN 62561-1 standard for connecting air-termination rods of 16mm to round conductors. It comes with a truss head screw and anti-rotation protection, usable for longitudinal or cross connection.
