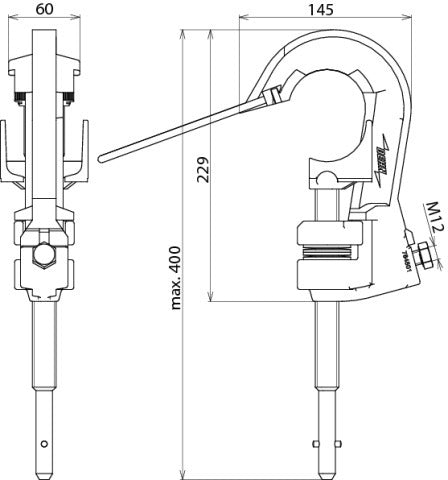

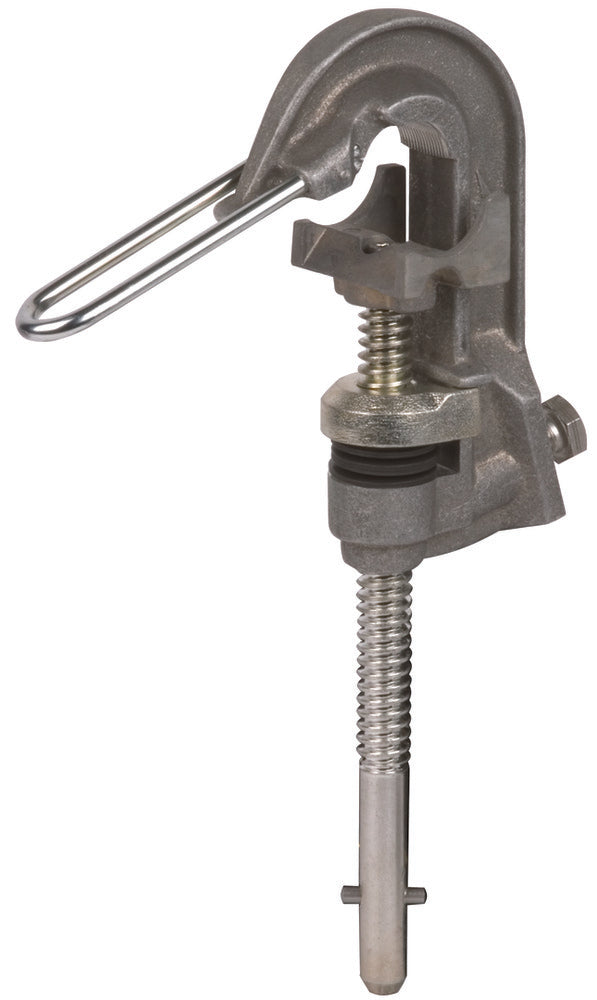

Dehn Phase Screw Clamp D 10-65mm With T-Pin Shaft Connection Element - 784501
This is a Dehn connection element designed for earthing and short-circuiting requirements with a maximum short circuit current of 33.5kA. Suitable for wire cross-sections ranging from 16 - 120mm² and clamping range of 10 - 65mm, it is specifically designed for connecting to overhead power cables. It features an anti-rotation element and provides secure fixation of the operating rod spindle with a cross pin. It is intended for phase-side application and is equipped with a coupling aid and long-threaded T pin shaft for connecting the phase cables, in accordance with EN/IEC 61230 (DIN VDE 0683-100) standards.
- Regular price
- £330.58
Description
This is a Dehn connection element designed for earthing and short-circuiting requirements with a maximum short circuit current of 33.5kA. Suitable for wire cross-sections ranging from 16 - 120mm² and clamping range of 10 - 65mm, it is specifically designed for connecting to overhead power cables. It features an anti-rotation element and provides secure fixation of the operating rod spindle with a cross pin. It is intended for phase-side application and is equipped with a coupling aid and long-threaded T pin shaft for connecting the phase cables, in accordance with EN/IEC 61230 (DIN VDE 0683-100) standards.
