Dehn Phase Screw Clamp D 10-85mm T Pin Shaft PK2 16 - 784085

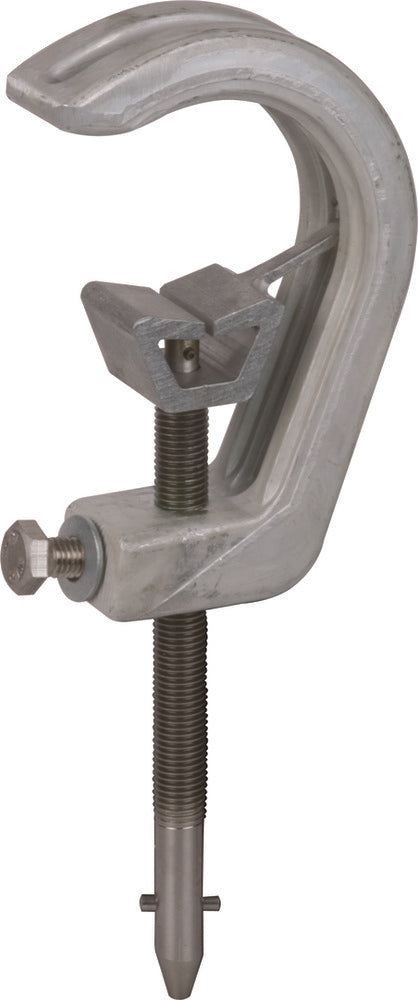

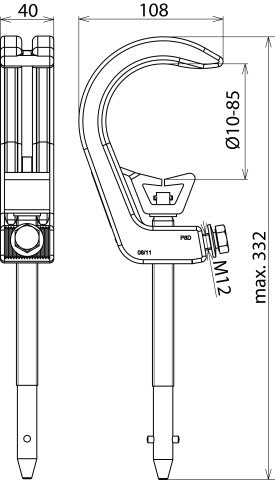

This is a phase screw clamp intended for the connection of phase cables in earthing and short-circuiting devices to the overhead line. It conforms to EN/IEC 61230 (DIN VDE 0683-100) standards. The clamp features a wide clamping range of 10-85mm and a long threaded T pin shaft to facilitate easier connection. It's designed to accommodate wire cross sections ranging from 16 to 150mm², and has a maximum short circuit current of 29.6kA. This product also comes with anti-rotation properties offered by its PK1 element, which prevents it from untwisting.
- Regular price
- £259.16
Description
This is a phase screw clamp intended for the connection of phase cables in earthing and short-circuiting devices to the overhead line. It conforms to EN/IEC 61230 (DIN VDE 0683-100) standards. The clamp features a wide clamping range of 10-85mm and a long threaded T pin shaft to facilitate easier connection. It's designed to accommodate wire cross sections ranging from 16 to 150mm², and has a maximum short circuit current of 29.6kA. This product also comes with anti-rotation properties offered by its PK1 element, which prevents it from untwisting.
