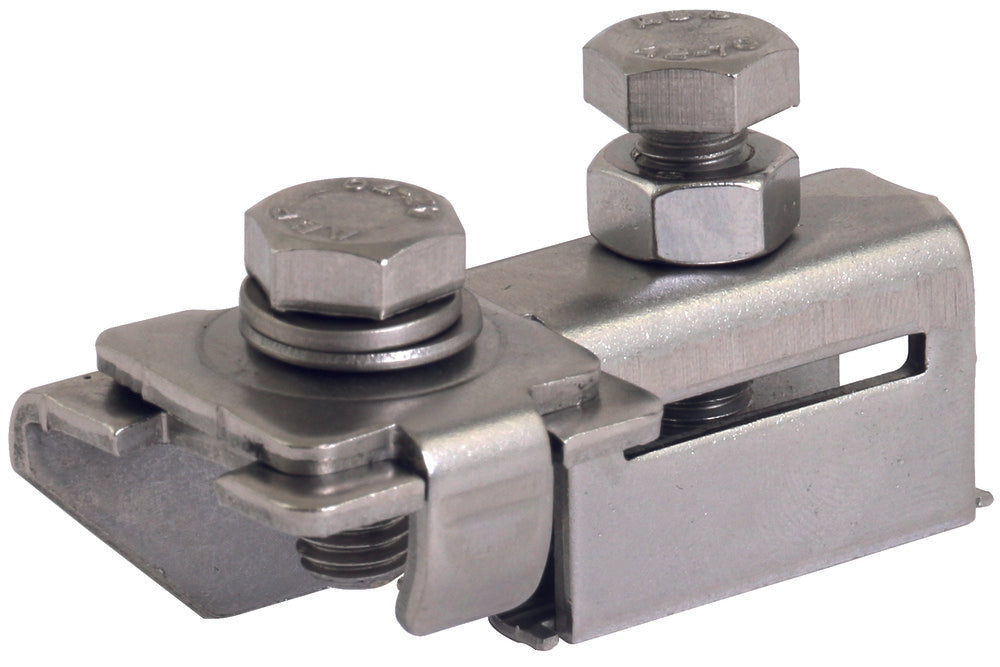

Dehn SPK 27.89 BRS AK1X10 2X6.8 GSG V2A Grip Head With Connection - 540199
This is a pipe clamp that is secured against self-loosening, designed as per DIN/EN 62561-1 standards, used to integrate pipes into protective and functional equipotential bonding in compliance with IEC 60364-4-41/5-54 (DIN VDE 0100 part 410/540) and into lightning equipotential bonding in accordance with IEC/EN 62305-3 (VDE 0185-305-3). The unit includes a separate grip head for connecting either 1 conductor Rd D10 mm, 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).
- Regular price
- £11.18
Description
This is a pipe clamp that is secured against self-loosening, designed as per DIN/EN 62561-1 standards, used to integrate pipes into protective and functional equipotential bonding in compliance with IEC 60364-4-41/5-54 (DIN VDE 0100 part 410/540) and into lightning equipotential bonding in accordance with IEC/EN 62305-3 (VDE 0185-305-3). The unit includes a separate grip head for connecting either 1 conductor Rd D10 mm, 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).
