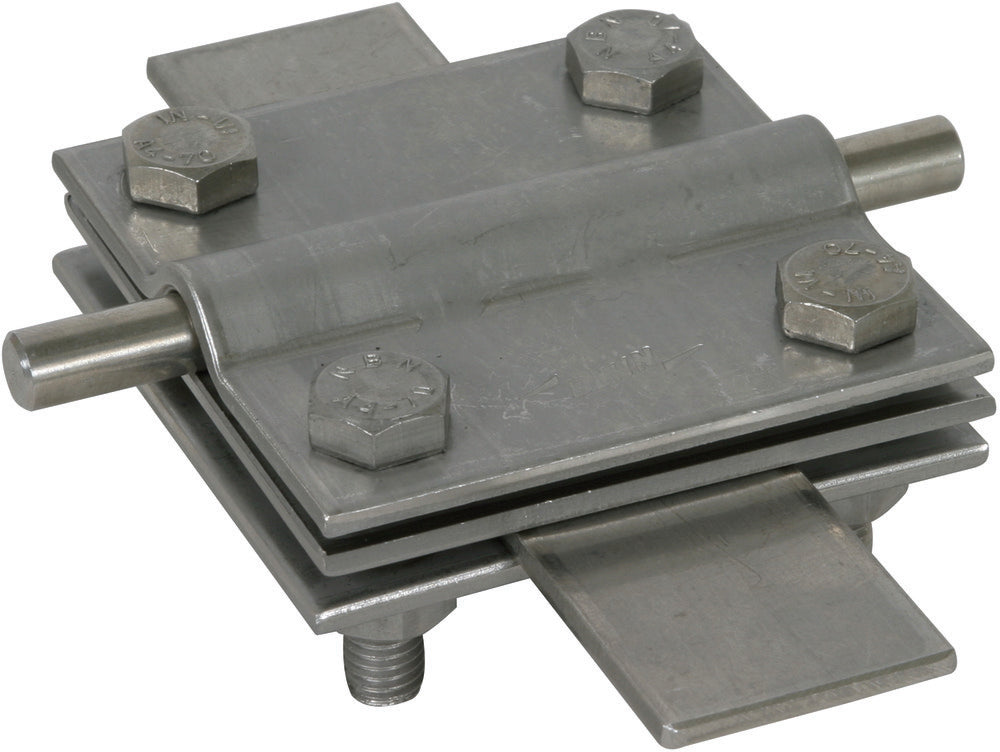

DEHN Stainless Steel Cross Unit RD 7-10 FL 40mm Interlock - 319229
This is a Dehn connector designed for lightning protection, made of stainless steel 316 (V4A). The connector has a cross-coupling type of connection, designed to connect round conductors with a diameter range of 1 7 - 10mm, as well as flat conductors with a diameter range of 1 30 - 40mm and 2 30 - 40mm. This unit is compliant with EN 62561-1, allowing both aboveground and underground connections. The unit comes without surface protection and is untreated. The attachment screws are hexagonal, and the unit comes with an intermediate plate and M8 screws.
- Regular price
- £23.99
Description
This is a Dehn connector designed for lightning protection, made of stainless steel 316 (V4A). The connector has a cross-coupling type of connection, designed to connect round conductors with a diameter range of 1 7 - 10mm, as well as flat conductors with a diameter range of 1 30 - 40mm and 2 30 - 40mm. This unit is compliant with EN 62561-1, allowing both aboveground and underground connections. The unit comes without surface protection and is untreated. The attachment screws are hexagonal, and the unit comes with an intermediate plate and M8 screws.
