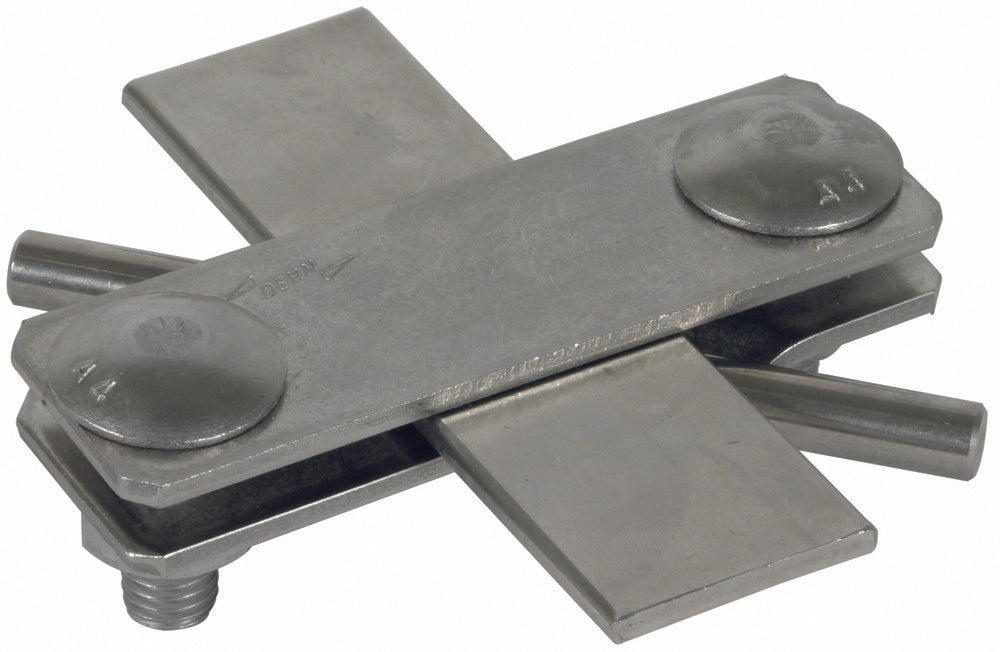

Dehn SV Clamp Stainless Steel V4A for FL 30 Rd 7-10mm - 308249
The Dehn SV connector is used for lightning protection and made from RVS 316 (V4A) stainless steel. It is used for cross-coupling connections with a round conductor diameter ranging from 1 7 - 10mm and a flat conductor diameter of 1 30mm. This connector does not have surface protection and remains untreated. The type of fastening screws used are flat head screws. It has a lightning current carrying capacity of 100kA for 10/350 µs. It features diagonal connecting clamps compliant with EN 62561-1 and is designed for cross and T connections of one round and one flat conductor. The device comes with M10 screws with an anti-rotation protection feature.
- Regular price
- £12.14
Description
The Dehn SV connector is used for lightning protection and made from RVS 316 (V4A) stainless steel. It is used for cross-coupling connections with a round conductor diameter ranging from 1 7 - 10mm and a flat conductor diameter of 1 30mm. This connector does not have surface protection and remains untreated. The type of fastening screws used are flat head screws. It has a lightning current carrying capacity of 100kA for 10/350 µs. It features diagonal connecting clamps compliant with EN 62561-1 and is designed for cross and T connections of one round and one flat conductor. The device comes with M10 screws with an anti-rotation protection feature.
