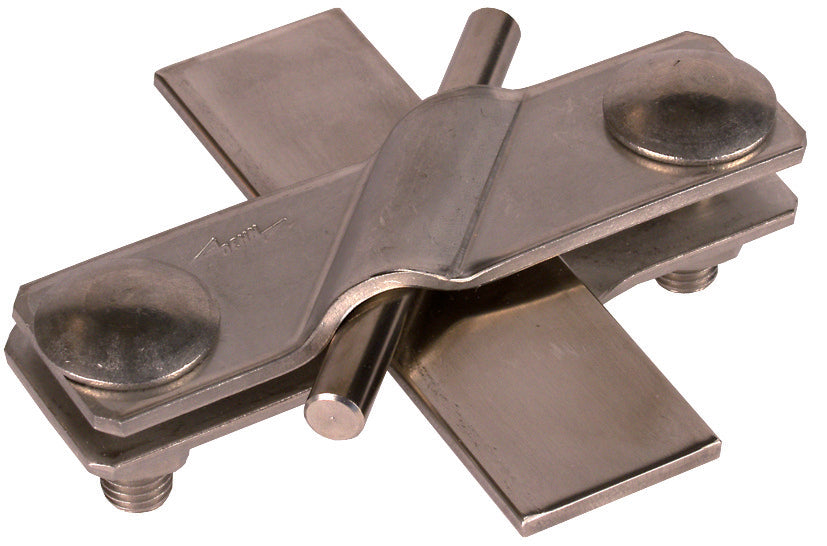

Dehn SV Clamp V4A Stainless Steel for FL 40 - RD 7-10 - 308329
Notice: This product will be discontinued in the future
The Dehn SV connector is designed for lightning protection, with the material made of RVS 316 (V4A). It features a cross coupling type of connection, with a round conductor diameter ranging from 7 to 10mm and a flat conductor diameter from 30 to 40mm. It has no surface protection, making it untreated. Also, it is a diagonal connecting clamp that complies with EN 62561-1, suitable for cross and T connections of both round and flat conductors with a width of up to 40mm. It is equipped with M10 screws that come with anti-rotation protection.
Notice: This product will be discontinued in the future
Description
The Dehn SV connector is designed for lightning protection, with the material made of RVS 316 (V4A). It features a cross coupling type of connection, with a round conductor diameter ranging from 7 to 10mm and a flat conductor diameter from 30 to 40mm. It has no surface protection, making it untreated. Also, it is a diagonal connecting clamp that complies with EN 62561-1, suitable for cross and T connections of both round and flat conductors with a width of up to 40mm. It is equipped with M10 screws that come with anti-rotation protection.
