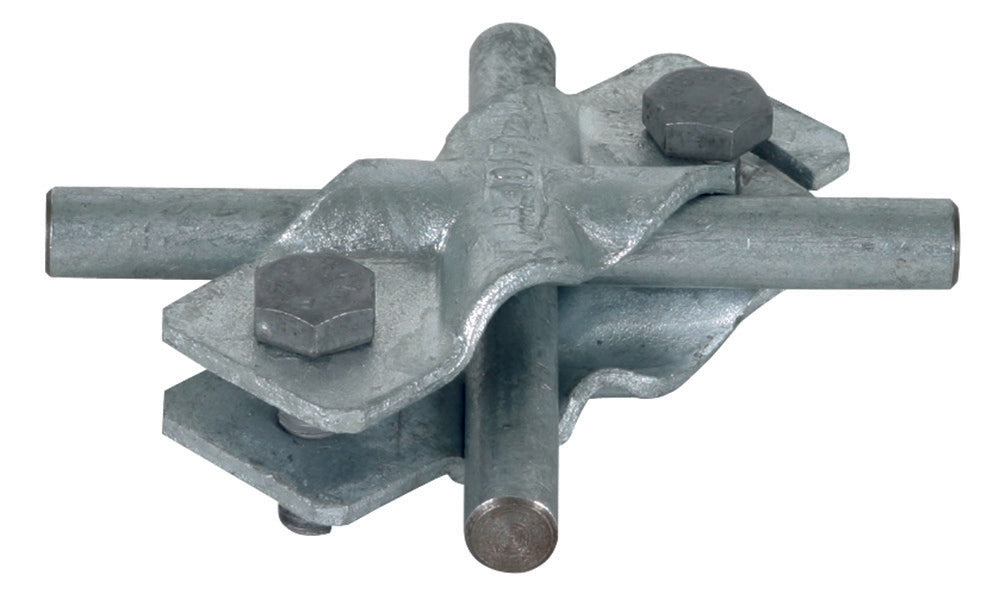

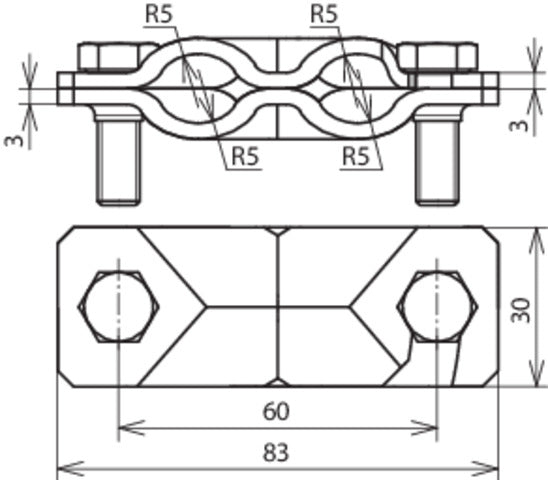

Dehn SVP Clamp For Rd 8-10mm Fl 30mm Without Insert - 308060 [2 pieces]
![Dehn SVP Clamp For Rd 8-10mm Fl 30mm Without Insert - 308060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nz6-00.7a35507d.jpg?v=1730382798)
![Dehn SVP Clamp For Rd 8-10mm Fl 30mm Without Insert - 308060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nz6-01.ef54e0b7.jpg?v=1730382799)
![Dehn SVP Clamp For Rd 8-10mm Fl 30mm Without Insert - 308060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nz6-00.7a35507d.jpg?height=232&v=1730382798&width=232)
![Dehn SVP Clamp For Rd 8-10mm Fl 30mm Without Insert - 308060 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3nz6-01.ef54e0b7.jpg?height=232&v=1730382799&width=232)
The Dehn SVP connector is designed for lightning protection in steel construction, featuring a cross-coupling type of connection. It is equipped for a round conductor diameter of 1 8 - 10mm, a flat conductor diameter of 1 30mm, a second round conductor diameter of 2 8 -10mm, and a second flat conductor diameter of 2 30mm. It also offers surface protection through thermal galvanization. This item is comparable to the German Schräg-Verbinder-Parallel-Klemmen, which are diagonal and parallel connecting clamps allowing for cross and parallel connections. They have a slotted upper part, eliminating the need to detach the screws, and do not come with an intermediate plate.
Contains 2 pieces
- Regular price
- £9.41
Description
The Dehn SVP connector is designed for lightning protection in steel construction, featuring a cross-coupling type of connection. It is equipped for a round conductor diameter of 1 8 - 10mm, a flat conductor diameter of 1 30mm, a second round conductor diameter of 2 8 -10mm, and a second flat conductor diameter of 2 30mm. It also offers surface protection through thermal galvanization. This item is comparable to the German Schräg-Verbinder-Parallel-Klemmen, which are diagonal and parallel connecting clamps allowing for cross and parallel connections. They have a slotted upper part, eliminating the need to detach the screws, and do not come with an intermediate plate.
