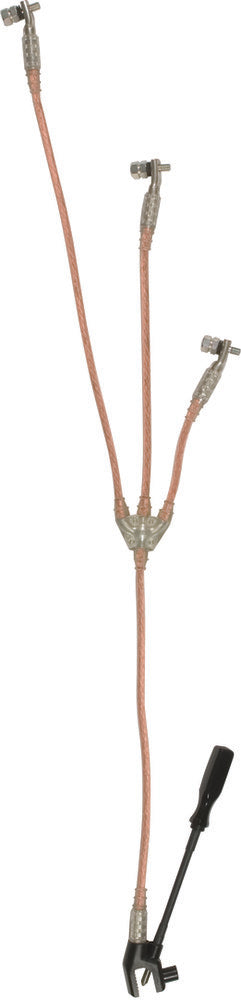

Dehn Three-Pole Earthing Short-Circuiting Device TI 35mm M10 Bolts - VSHDQZB
The Dehn TI earthing and short-circuiting device is partially insulated and features an earth clamp with a flexible adjustable handle and two setting positions, with a clamping range up to 20mm. Ideal for use in cable distribution cabinets, it comes with a copper cable with three poles. The earthing side connection part and phase side connection part specifications are otherwise indicated. The wire cross-section on the earth side and phase side is 35mm². The earthing wire length is 500mm, while the phase wire length is 200mm for wire type A and 400mm for wire type B. The device variant is VSHDQZB. Other cable lengths can be configured online via Dehn's earthing and short-circuiting configurator.
- Regular price
- £386.92
Description
The Dehn TI earthing and short-circuiting device is partially insulated and features an earth clamp with a flexible adjustable handle and two setting positions, with a clamping range up to 20mm. Ideal for use in cable distribution cabinets, it comes with a copper cable with three poles. The earthing side connection part and phase side connection part specifications are otherwise indicated. The wire cross-section on the earth side and phase side is 35mm². The earthing wire length is 500mm, while the phase wire length is 200mm for wire type A and 400mm for wire type B. The device variant is VSHDQZB. Other cable lengths can be configured online via Dehn's earthing and short-circuiting configurator.
