Dehn Universal Clamp UK 30 SQ for 25/30mm Conductors - 773330
Notice: This product will be discontinued in the future

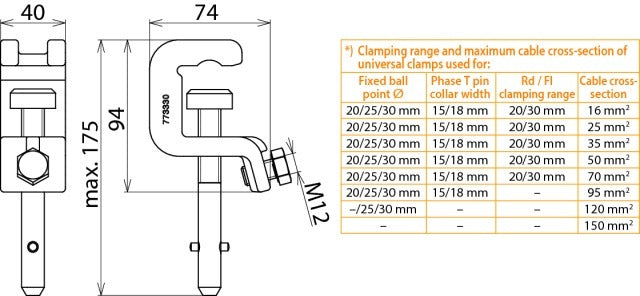

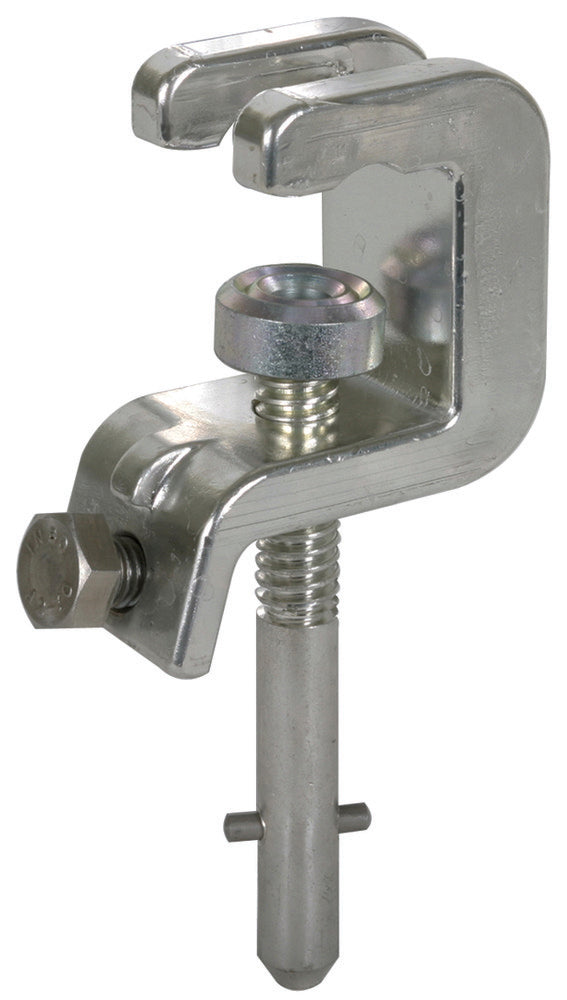

This is a universal clamp with a T pin shaft designed for use as a phase or earth connecting element, in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. Made for fixed ball points and fixed T points, it can also handle flat and round conductors, and is meant for attachment to earthing and short-circuiting devices. It comes with a PK 1 cable lug and contains a rotating protection feature. The maximum short-circuit current capacity is 33.5kA. The clamp is designed for a cable cross-section of 16 - 120mm², offers a clamping range of 30mm and has an attachment method for the operating rod spindle with a transverse pin.
Notice: This product will be discontinued in the future
Description
This is a universal clamp with a T pin shaft designed for use as a phase or earth connecting element, in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. Made for fixed ball points and fixed T points, it can also handle flat and round conductors, and is meant for attachment to earthing and short-circuiting devices. It comes with a PK 1 cable lug and contains a rotating protection feature. The maximum short-circuit current capacity is 33.5kA. The clamp is designed for a cable cross-section of 16 - 120mm², offers a clamping range of 30mm and has an attachment method for the operating rod spindle with a transverse pin.
