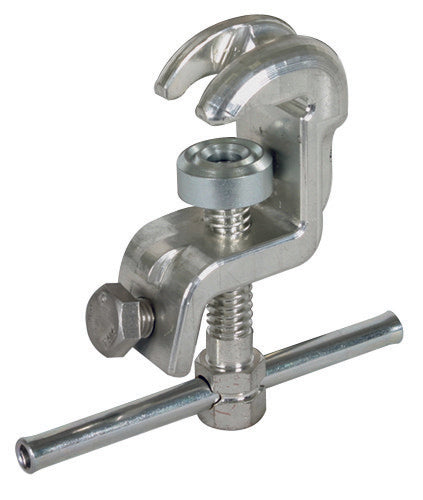

DEHN Universal Earthing Clamp K 20/25 FL 20 T 15mm With Accessories - 774434
Notice: This product will be discontinued in the future

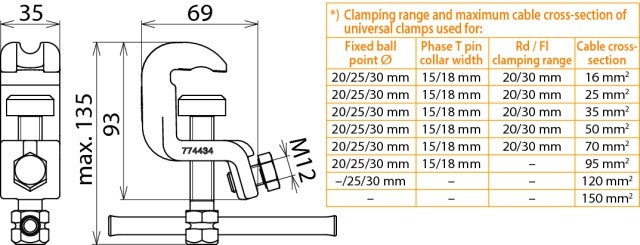

The product is a universal earthing clamp with a tommy bar, designed for connecting the earthing cable to fixed ball points and T pins, as well as round and flat conductors. It is compliant with EN/IEC 61230 (DIN VDE 0683-100) standards and comes with a PK1 anti-rotation element. The clamp can support a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². It has a clamping range of 20mm and connects via a ball-proof point of 25mm. The clamp is typically applied on the earth side.
Notice: This product will be discontinued in the future
Description
The product is a universal earthing clamp with a tommy bar, designed for connecting the earthing cable to fixed ball points and T pins, as well as round and flat conductors. It is compliant with EN/IEC 61230 (DIN VDE 0683-100) standards and comes with a PK1 anti-rotation element. The clamp can support a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². It has a clamping range of 20mm and connects via a ball-proof point of 25mm. The clamp is typically applied on the earth side.
