Dehn Waterproof Wall Bushing For Thicknesses 400-500mm StSt V4A - 478550

Dehn Waterproof Wall Bushing For Thicknesses 400-500mm StSt V4A - 478550
Dehn Waterproof Wall Bushing For Thicknesses 400-500mm StSt V4A - 478550
Dehn Waterproof Wall Bushing For Thicknesses 400-500mm StSt V4A - 478550
Dehn Waterproof Wall Bushing For Thicknesses 400-500mm StSt V4A - 478550
Image may vary slightly
See specifications for accurate information.
Reference: E3NHC
Brand: DEHN
Mfr. Part: 478550

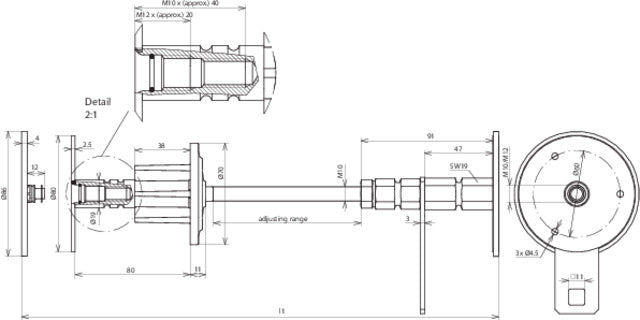

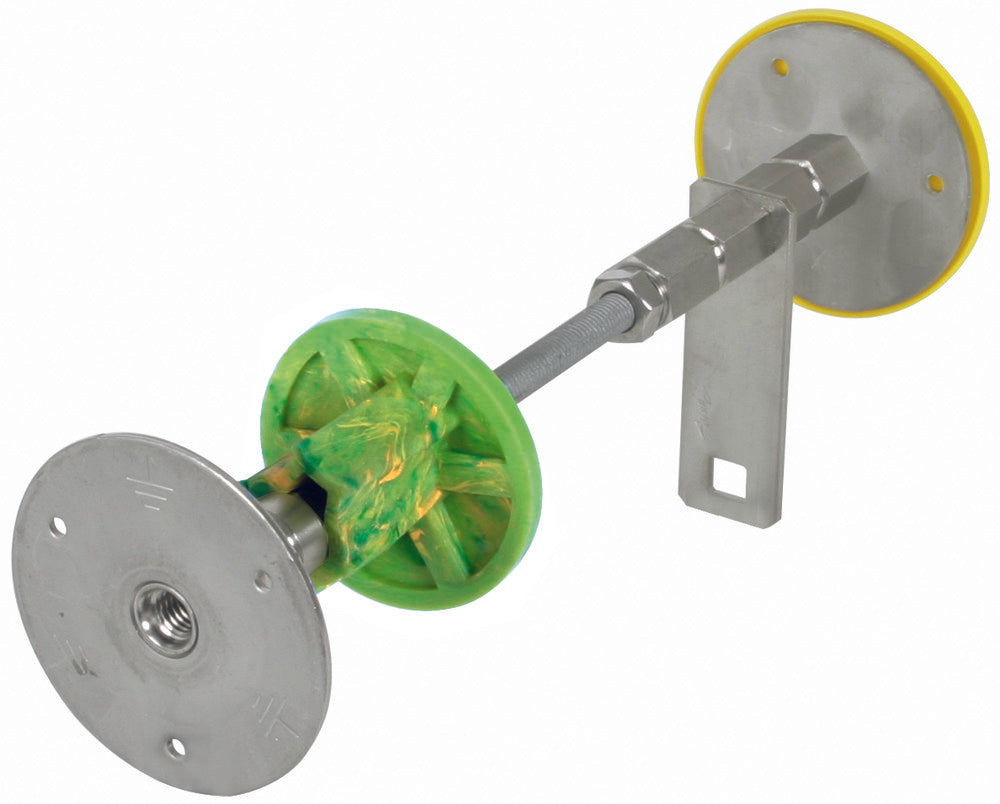

This is a water-pressure-tight wall bushing designed for white tanks. It is used to guide the earthing conductor or equipotential bonding conductor through concrete. It features an adjustable M10 threaded rod and is created for formwork installation. It includes a water barrier and a double thread of M10/M12. The product comes with a terminal clamp (St/tZn, 30 x 4 mm) having a square hole to connect round conductors using a clamping piece or flat conductors using a cross unit.

View all
Note: product cannot be returned
£93.97
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00 (excl VAT)
Expected delivery in 13 - 14 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a water-pressure-tight wall bushing designed for white tanks. It is used to guide the earthing conductor or equipotential bonding conductor through concrete. It features an adjustable M10 threaded rod and is created for formwork installation. It includes a water barrier and a double thread of M10/M12. The product comes with a terminal clamp (St/tZn, 30 x 4 mm) having a square hole to connect round conductors using a clamping piece or flat conductors using a cross unit.

Downloads

Product datasheet (EN)
pdf
Download

Specifications
