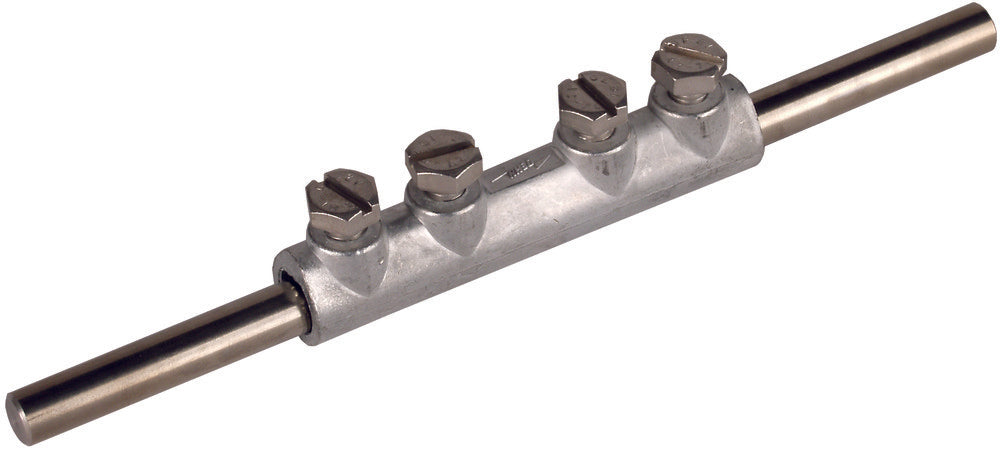

Dehn ZDC Connecting Sleeve For Rd 8mm With 4 Screws M6x10mm - 385203
This item is a Dehn connector, specifically designed for lightning protection. It is made of pressure die-cast zinc. The connector type is a sleeve connection that allows the longitudinal connection of two round conductors. Each conductor has a diameter of 8mm. It does not come with surface protection, meaning it is untreated. For attachment, it utilizes hexagonal screws. Notably, it has a lightning current-carrying capacity of 100kA under a 10/350 µs impulse. This sleeve connector adheres to EN 62561-1 standards, and the installation involves the usage of four M6 screws.
- Regular price
- £4.50
Description
This item is a Dehn connector, specifically designed for lightning protection. It is made of pressure die-cast zinc. The connector type is a sleeve connection that allows the longitudinal connection of two round conductors. Each conductor has a diameter of 8mm. It does not come with surface protection, meaning it is untreated. For attachment, it utilizes hexagonal screws. Notably, it has a lightning current-carrying capacity of 100kA under a 10/350 µs impulse. This sleeve connector adheres to EN 62561-1 standards, and the installation involves the usage of four M6 screws.
