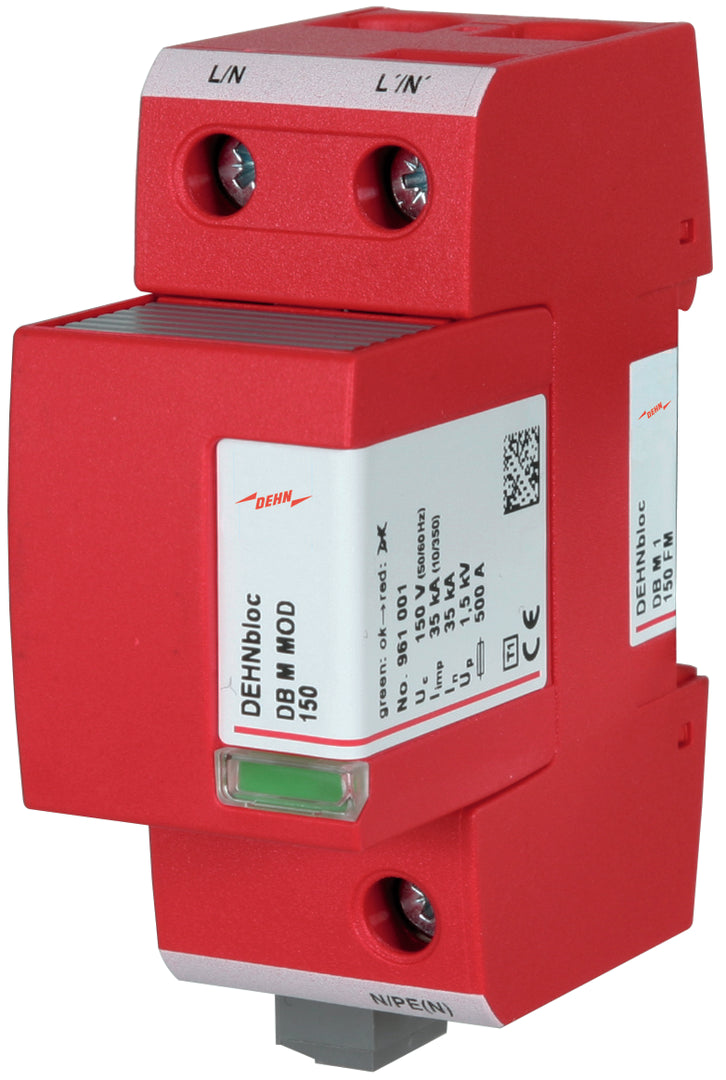

Dehnbloc M 1 150 FM Lightning Current Arrester - 961115
The DEHNbloc modular lightning current arrester is a single-pole, spark-gap-based type 1 device according to EN 61643-11. It comprises a base part and a plug-in protection module. With RADAX Flow follow current limitation, it ensures maximum system availability. It can protect low-voltage consumer installations against surges and even direct lightning strikes. It can be installed in accordance with the lightning protection zone concept at the boundaries from 0A – 1. The device supports a max continuous AC voltage of 150V and has a DIN rail of 35mm. It uses max conductor cross-section flexible 35mm² and rigid 50mm² (excluding earth). It has a level of protection (IP) of IP20 and a DIN size of 2 TE (Grid size). This surge protector is compatible with TN and TN-C network type. It also includes a status contact.
- Regular price
- £292.64
Description
The DEHNbloc modular lightning current arrester is a single-pole, spark-gap-based type 1 device according to EN 61643-11. It comprises a base part and a plug-in protection module. With RADAX Flow follow current limitation, it ensures maximum system availability. It can protect low-voltage consumer installations against surges and even direct lightning strikes. It can be installed in accordance with the lightning protection zone concept at the boundaries from 0A – 1. The device supports a max continuous AC voltage of 150V and has a DIN rail of 35mm. It uses max conductor cross-section flexible 35mm² and rigid 50mm² (excluding earth). It has a level of protection (IP) of IP20 and a DIN size of 2 TE (Grid size). This surge protector is compatible with TN and TN-C network type. It also includes a status contact.
