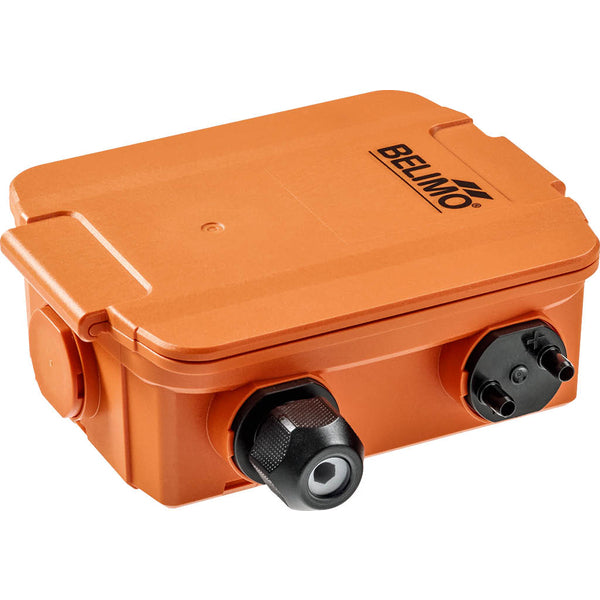

Belimo Differential Pressure Sensor -0.001..0.025bar 0-5V/0-10V/4-20mA 22ADP-184
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. This pressure sensor is equipped with a differential pressure transmitter with 8 selectable ranges. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V/4-20 mA. The differential pressure sensor has a protection rating of IP65. This differential pressure sensor is designed for monitoring the differential pressure of air and other non-flammable and non-aggressive gases. The differential pressure sensor is typically applied in HVAC systems for monitoring air filters and fans V-belts. This pressure sensor also finds use in pressure differential systems.Transmitters that incorporate the auto-zero calibration feature require no maintenance. This auto-zero calibration automatically fine-tunes the transmitter's zero point every 10 minutes. This function eradicates any output signal drift that may occur due to thermal, electronic, or mechanical influences. The auto-zero adjustment process takes about 4 seconds, after which the device reverts to its standard measurement mode. During this brief 4-second adjustment phase, the output and display readings remain fixed to the most recent measured value.
- Regular price
- £173.19
Description
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. This pressure sensor is equipped with a differential pressure transmitter with 8 selectable ranges. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V/4-20 mA. The differential pressure sensor has a protection rating of IP65. This differential pressure sensor is designed for monitoring the differential pressure of air and other non-flammable and non-aggressive gases. The differential pressure sensor is typically applied in HVAC systems for monitoring air filters and fans V-belts. This pressure sensor also finds use in pressure differential systems.Transmitters that incorporate the auto-zero calibration feature require no maintenance. This auto-zero calibration automatically fine-tunes the transmitter's zero point every 10 minutes. This function eradicates any output signal drift that may occur due to thermal, electronic, or mechanical influences. The auto-zero adjustment process takes about 4 seconds, after which the device reverts to its standard measurement mode. During this brief 4-second adjustment phase, the output and display readings remain fixed to the most recent measured value.
Pros:
- Eight selectable differential pressure ranges for adaptability
- Sensor stores calculation formulas from major manufacturers
- Demonstrates excellent zero-point stability with high precision
- Choose between auto-zero or manual calibration for flexibility
- Offers the option of two independent measurement systems for added versatility
