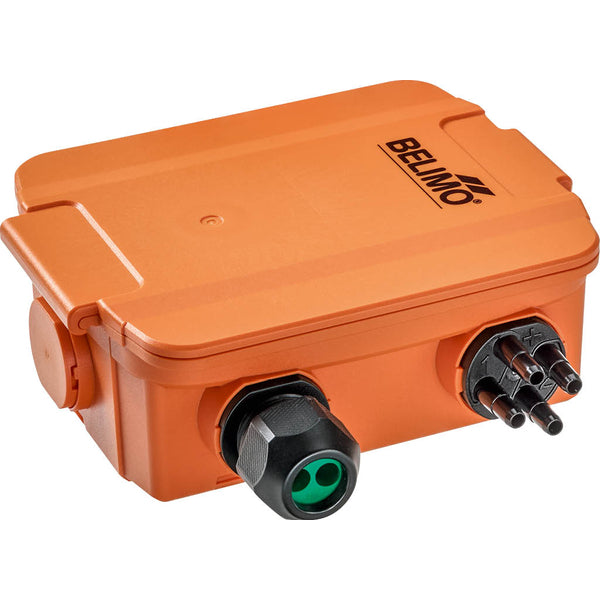

Belimo Differential Pressure Sensor -0.001..0.025bar 0-5V/0-10V Air Dual 22ADP-124D
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The differential pressure sensor has a protection rating of IP65. The differential pressure sensor has two independent measuring systems, each with eight selectable ranges and an output of 0-5 V/0-10 V. This pressure sensor is designed to monitor the differential pressure of air and other non-aggressive, non-flammable gases. This differential pressure sensor is commonly used in HVAC systems to monitor air filters, fan V-belts, and fire and smoke control dampers.
- Regular price
- £199.97
Description
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The differential pressure sensor has a protection rating of IP65. The differential pressure sensor has two independent measuring systems, each with eight selectable ranges and an output of 0-5 V/0-10 V. This pressure sensor is designed to monitor the differential pressure of air and other non-aggressive, non-flammable gases. This differential pressure sensor is commonly used in HVAC systems to monitor air filters, fan V-belts, and fire and smoke control dampers.
Pros:
- Eight selectable differential pressure ranges for adaptability
- Sensor stores calculation formulas from major manufacturers
- Demonstrates excellent zero-point stability with high precision
- Choose between auto-zero or manual calibration for flexibility
- Offers the option of two independent measurement systems for added versatility
