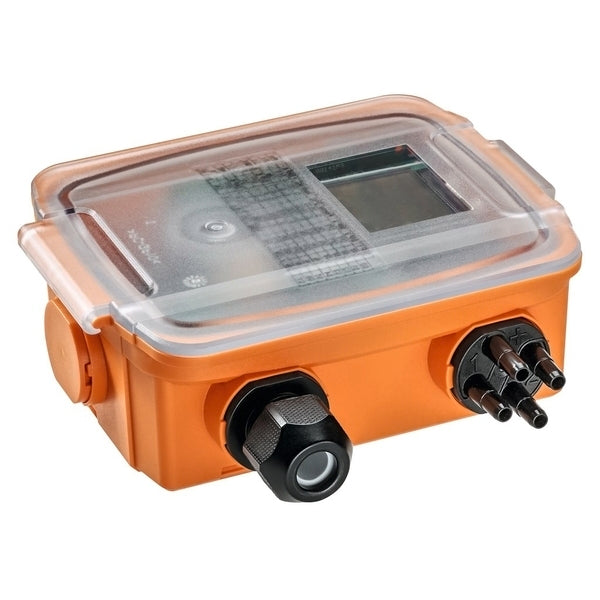

Belimo Differential Pressure Sensor -0.001..0.025bar 0-5V/0-10V Air Dual 2xModbus RTU LCD 22ADP-154K
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V. The differential pressure sensor has a protection rating of IP65. This pressure sensor features an LCD display for easy monitoring. This pressure sensor includes a differential pressure transmitter with two independent measuring systems. Additionally, the sensor offers 8 selectable ranges each and Modbus functionality. The differential pressure sensor also has two additional inputs that can connect to a potential-free contact or an NTC10k resistance sensor. The values at these additional inputs can be read out via Modbus. This differential pressure sensor is suitable for monitoring over-, under-, or differential pressure of air and other non-flammable and non-aggressive gases. It is commonly used in HVAC systems for monitoring air filters, fans V-belts, and in pressure differential systems.
- Regular price
- £389.16
Description
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V. The differential pressure sensor has a protection rating of IP65. This pressure sensor features an LCD display for easy monitoring. This pressure sensor includes a differential pressure transmitter with two independent measuring systems. Additionally, the sensor offers 8 selectable ranges each and Modbus functionality. The differential pressure sensor also has two additional inputs that can connect to a potential-free contact or an NTC10k resistance sensor. The values at these additional inputs can be read out via Modbus. This differential pressure sensor is suitable for monitoring over-, under-, or differential pressure of air and other non-flammable and non-aggressive gases. It is commonly used in HVAC systems for monitoring air filters, fans V-belts, and in pressure differential systems.
Pros:
- Eight selectable differential pressure ranges for adaptability
- Sensor stores calculation formulas from major manufacturers
- Demonstrates excellent zero-point stability with high precision
- Choose between auto-zero or manual calibration for flexibility
- Offers the option of two independent measurement systems for added versatility
- Pressure sensor features an LCD display for easy monitoring
