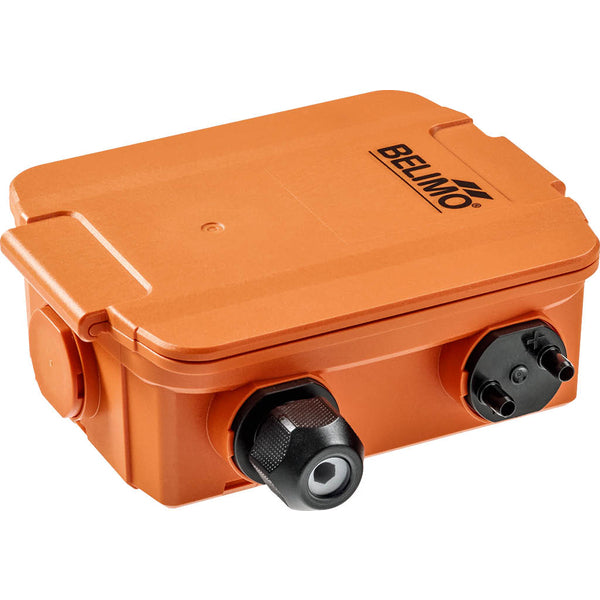

Belimo Differential Pressure Sensor -0.0015..0.0025bar 0-5V/0-10V Modbus RTU 22ADP-15Q
Notice: This product is discontinued
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.0015 to 0.0025 bar. This pressure sensor is equipped with a differential pressure transmitter with 8 selectable ranges. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V. The differential pressure sensor has a protection rating of IP65. The pressure sensor communicates via Modbus RTU for efficient data transfer. This differential pressure sensor is designed for monitoring the differential pressure of air and other non-flammable and non-aggressive gases. The differential pressure sensor is typically applied in HVAC systems for monitoring air filters and fans V-belts. This pressure sensor also finds use in pressure differential systems.Transmitters that incorporate the auto-zero calibration feature require no maintenance. This auto-zero calibration automatically fine-tunes the transmitter's zero point every 10 minutes. This function eradicates any output signal drift that may occur due to thermal, electronic, or mechanical influences. The auto-zero adjustment process takes about 4 seconds, after which the device reverts to its standard measurement mode. During this brief 4-second adjustment phase, the output and display readings remain fixed to the most recent measured value.
Notice: This product is discontinued
Description
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.0015 to 0.0025 bar. This pressure sensor is equipped with a differential pressure transmitter with 8 selectable ranges. The power supply voltage is 24 V AC/DC. The output signal is 0-5 V/0-10 V. The differential pressure sensor has a protection rating of IP65. The pressure sensor communicates via Modbus RTU for efficient data transfer. This differential pressure sensor is designed for monitoring the differential pressure of air and other non-flammable and non-aggressive gases. The differential pressure sensor is typically applied in HVAC systems for monitoring air filters and fans V-belts. This pressure sensor also finds use in pressure differential systems.Transmitters that incorporate the auto-zero calibration feature require no maintenance. This auto-zero calibration automatically fine-tunes the transmitter's zero point every 10 minutes. This function eradicates any output signal drift that may occur due to thermal, electronic, or mechanical influences. The auto-zero adjustment process takes about 4 seconds, after which the device reverts to its standard measurement mode. During this brief 4-second adjustment phase, the output and display readings remain fixed to the most recent measured value.
Pros:
- Eight selectable differential pressure ranges for adaptability
- Sensor stores calculation formulas from major manufacturers
- Demonstrates excellent zero-point stability with high precision
- Choose between auto-zero or manual calibration for flexibility
- Offers the option of two independent measurement systems for added versatility
