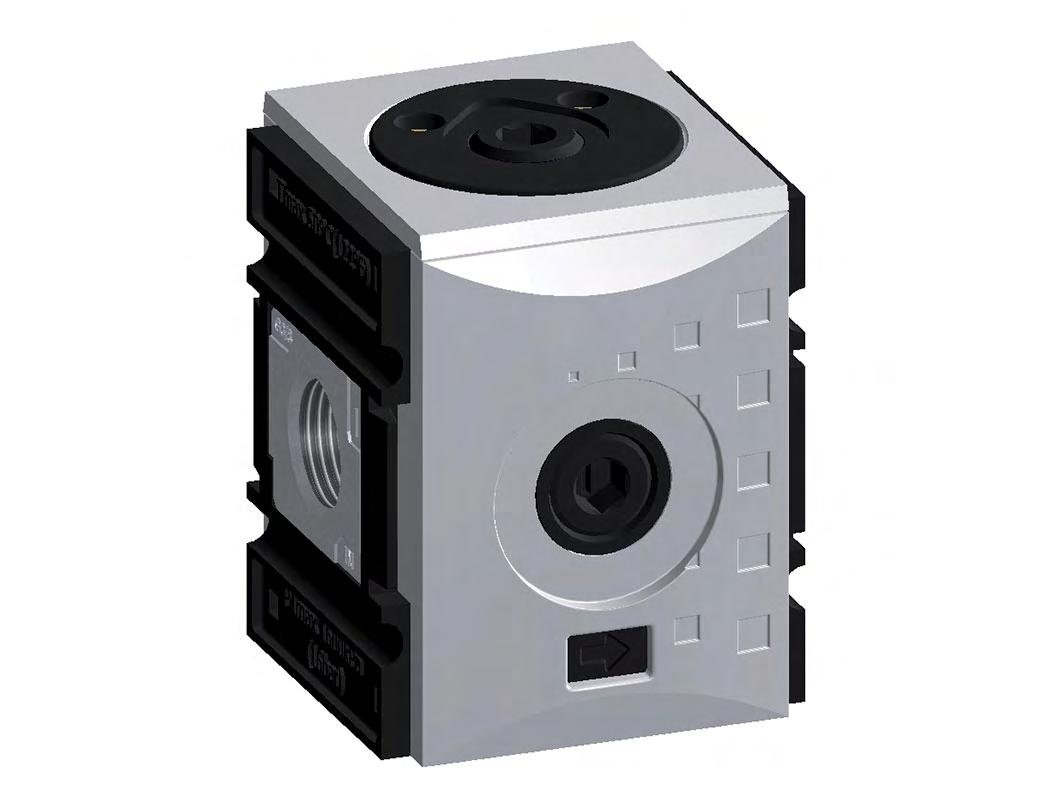

Distributor G3/8 3600 l/min with Pressure Switch Futura 1

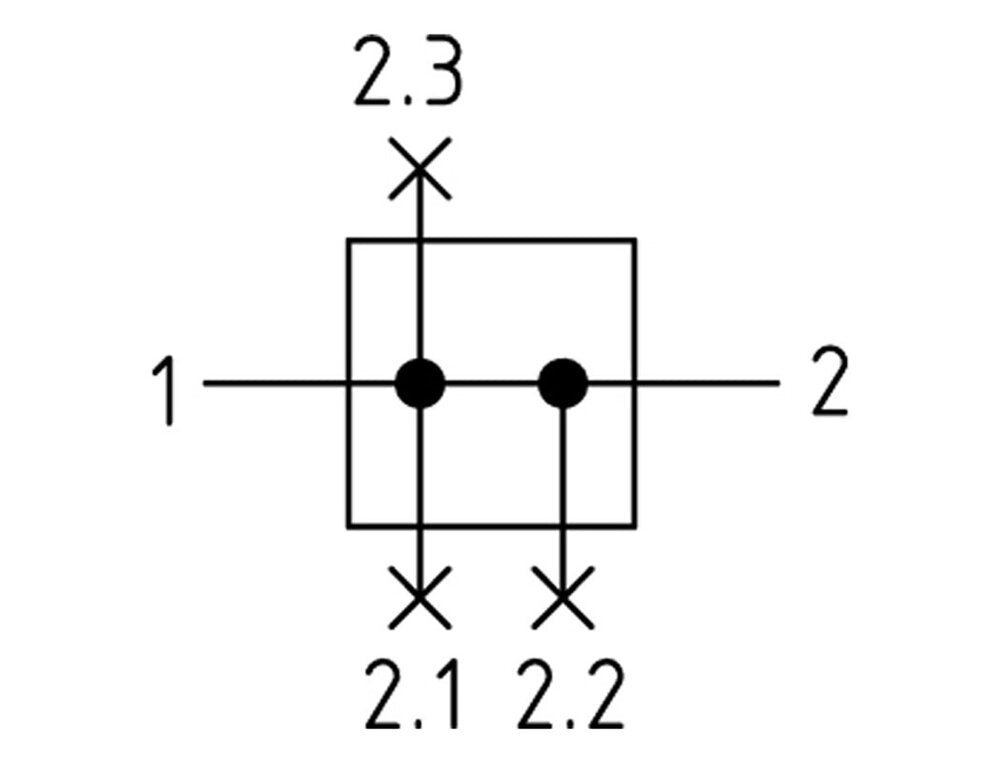

This is a compressed air distributor with pressure switch. It has 1 inlet and 3 outlet connections of G 3/8 inch and 1/4 inch. It can be used as an intermediate distributor for varying compressed air qualities. The maximum flow rate is 3600 l/min. The pressure switch installed at connection B. Pressure switch has settings range: 0.2 - 16 bar, voltage DC: 12 - 30 V, max. 3 A/90 W, voltage AC: 12 - 250 V, max. 5 A/750 VA, degree of protection: IP 65 and plug DIN-A (4-pin).
- Regular price
- £138.78
Description
This is a compressed air distributor with pressure switch. It has 1 inlet and 3 outlet connections of G 3/8 inch and 1/4 inch. It can be used as an intermediate distributor for varying compressed air qualities. The maximum flow rate is 3600 l/min. The pressure switch installed at connection B. Pressure switch has settings range: 0.2 - 16 bar, voltage DC: 12 - 30 V, max. 3 A/90 W, voltage AC: 12 - 250 V, max. 5 A/750 VA, degree of protection: IP 65 and plug DIN-A (4-pin).
