DN25 PN40 1-Piece 2-Way Stainless Steel Flanged Ball Valve PTFE ISO-Top F04 - TamesonPRO 1122-025

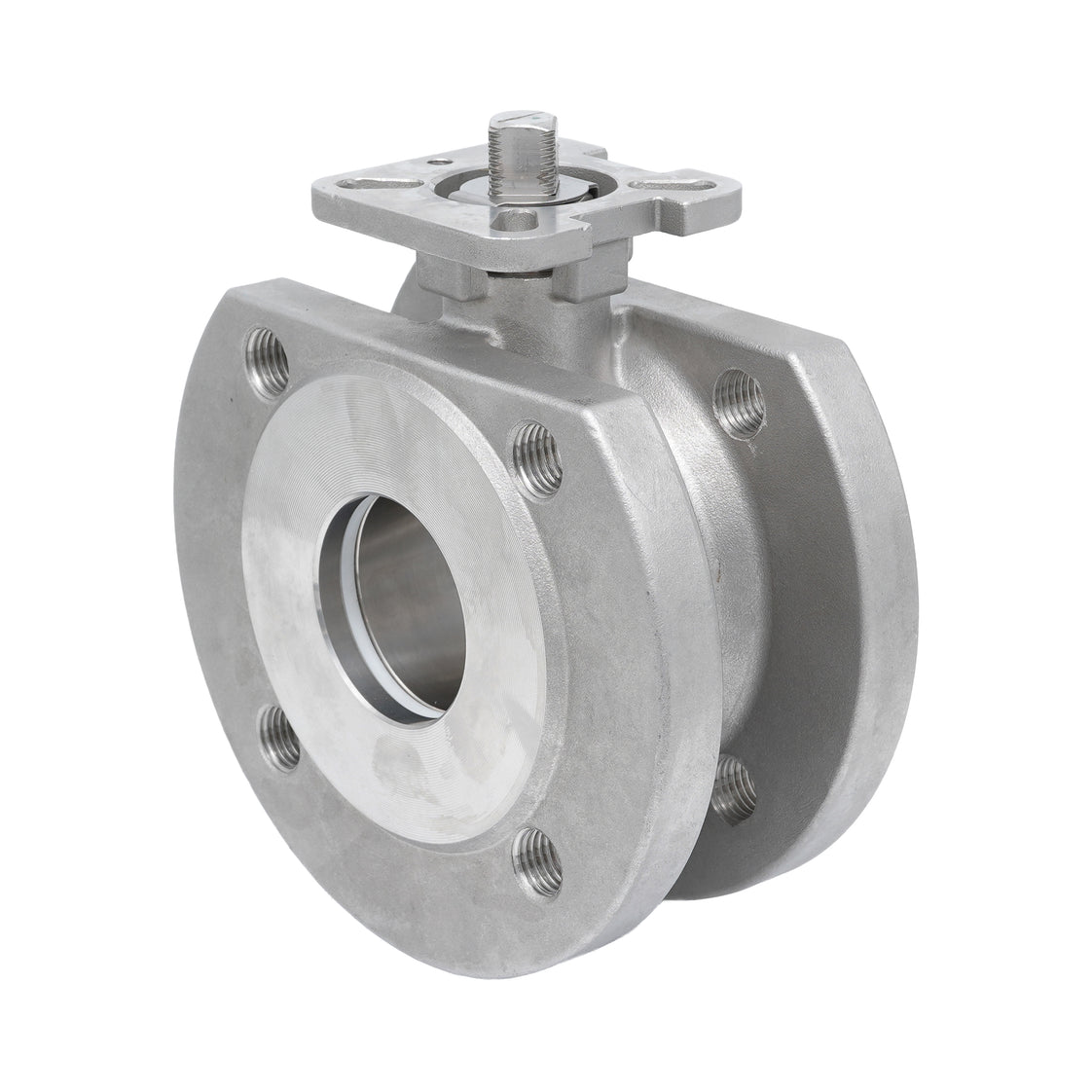

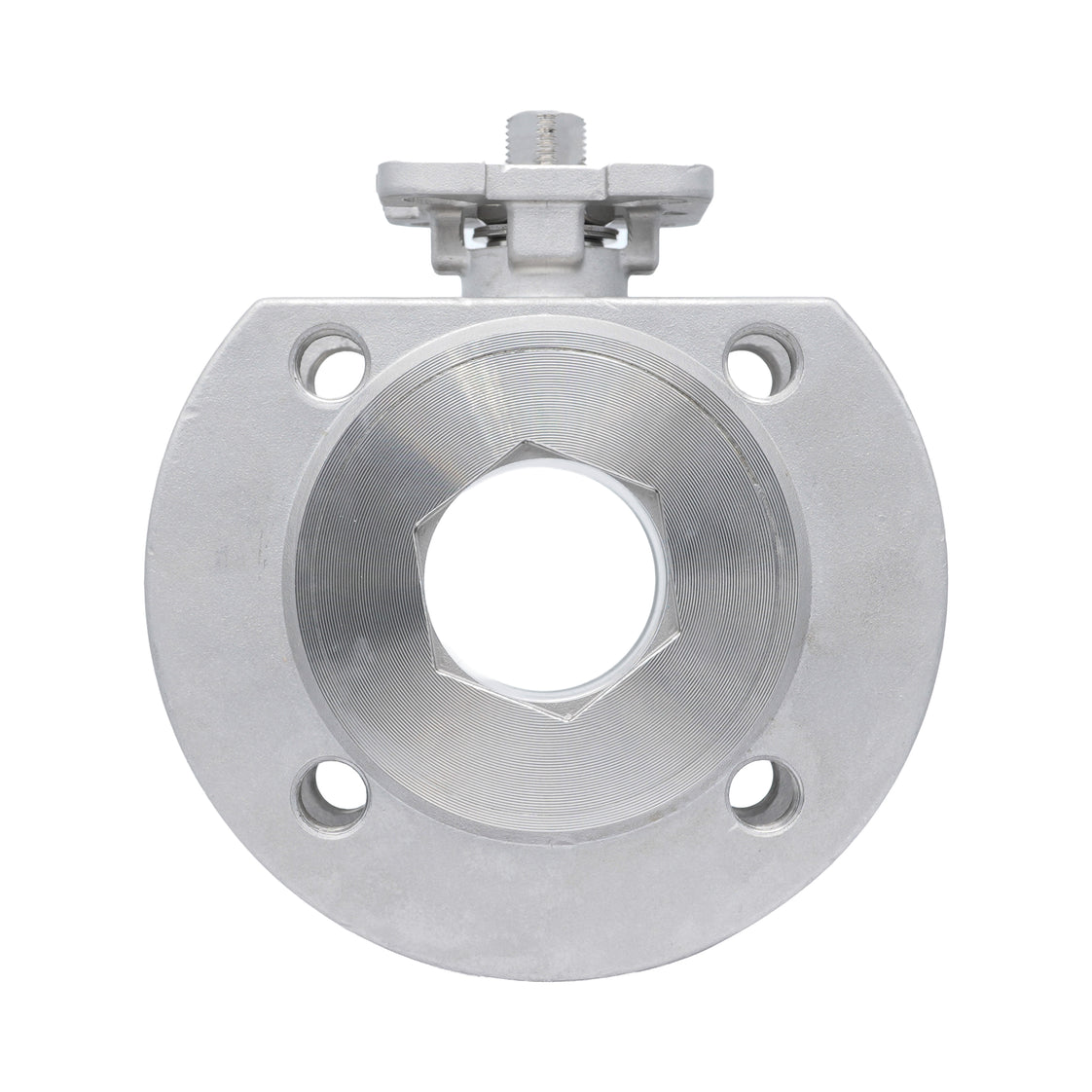

This 2-way 1-piece stainless steel flanged ball valve has DN25 connections. Pressure rating: PN40. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting PTFE seats to handle a wide range of media.

The valve is rated up to 40 bar at 20°C (579 psi at 68°F). It is suitable for temperatures from -29°C up to 160°C (-20°F up to 320°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 25 mm bore, with Kv value of 84 m³/h (at a differential pressure of 1 bar) (Cv = 97.1 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.

The valve is suitable for electrical or pneumatic actuation thanks to the ISO-top 5211 F04

Pros:

• Flange in accordance with EN 1092-1 standard
• Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
• Wide operating temperature range from -29°C up to 160°C (-20°F to 320°F)
• Full-bore design for minimal pressure loss and maximum flow
• PTFE seats for smooth operation and tight shut-off

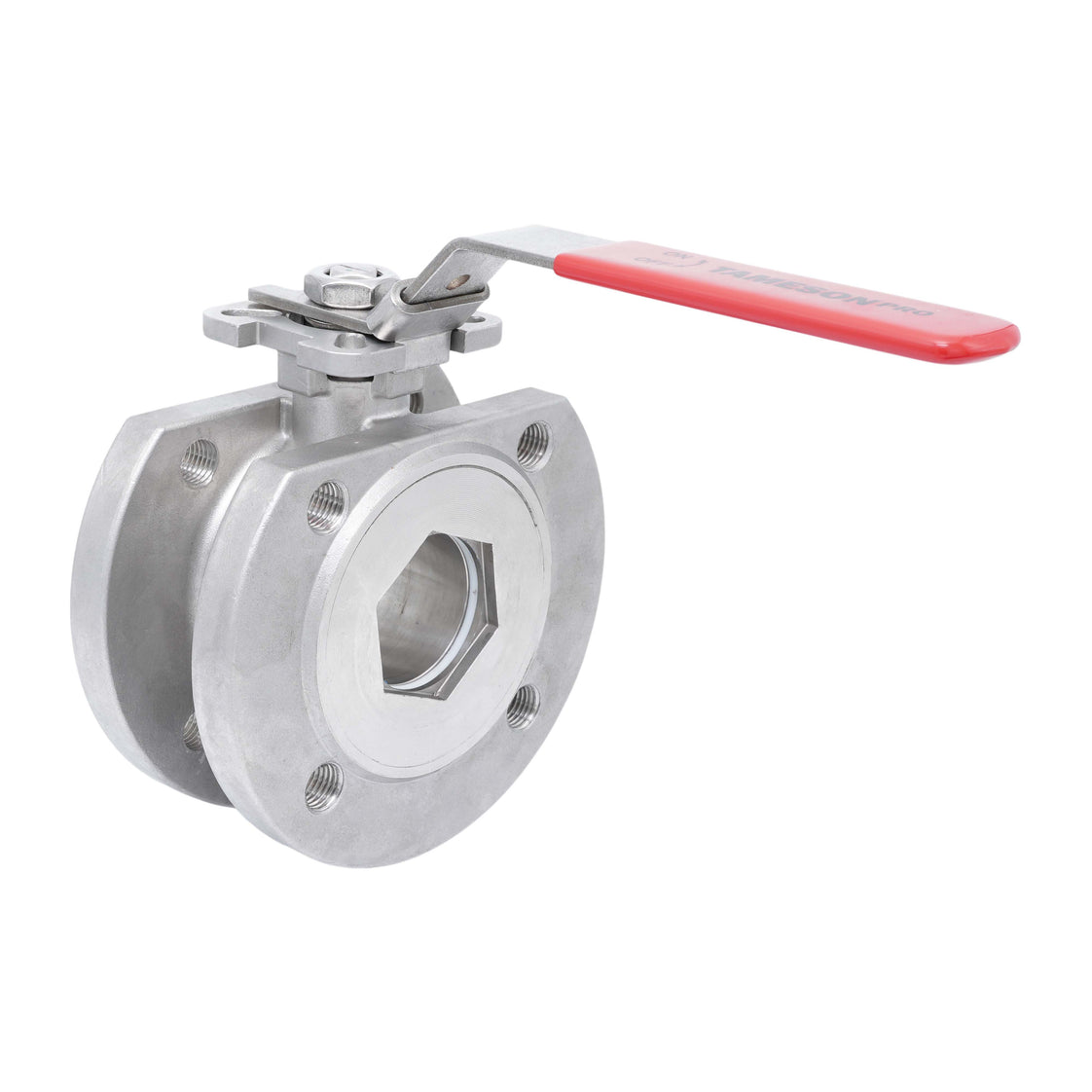

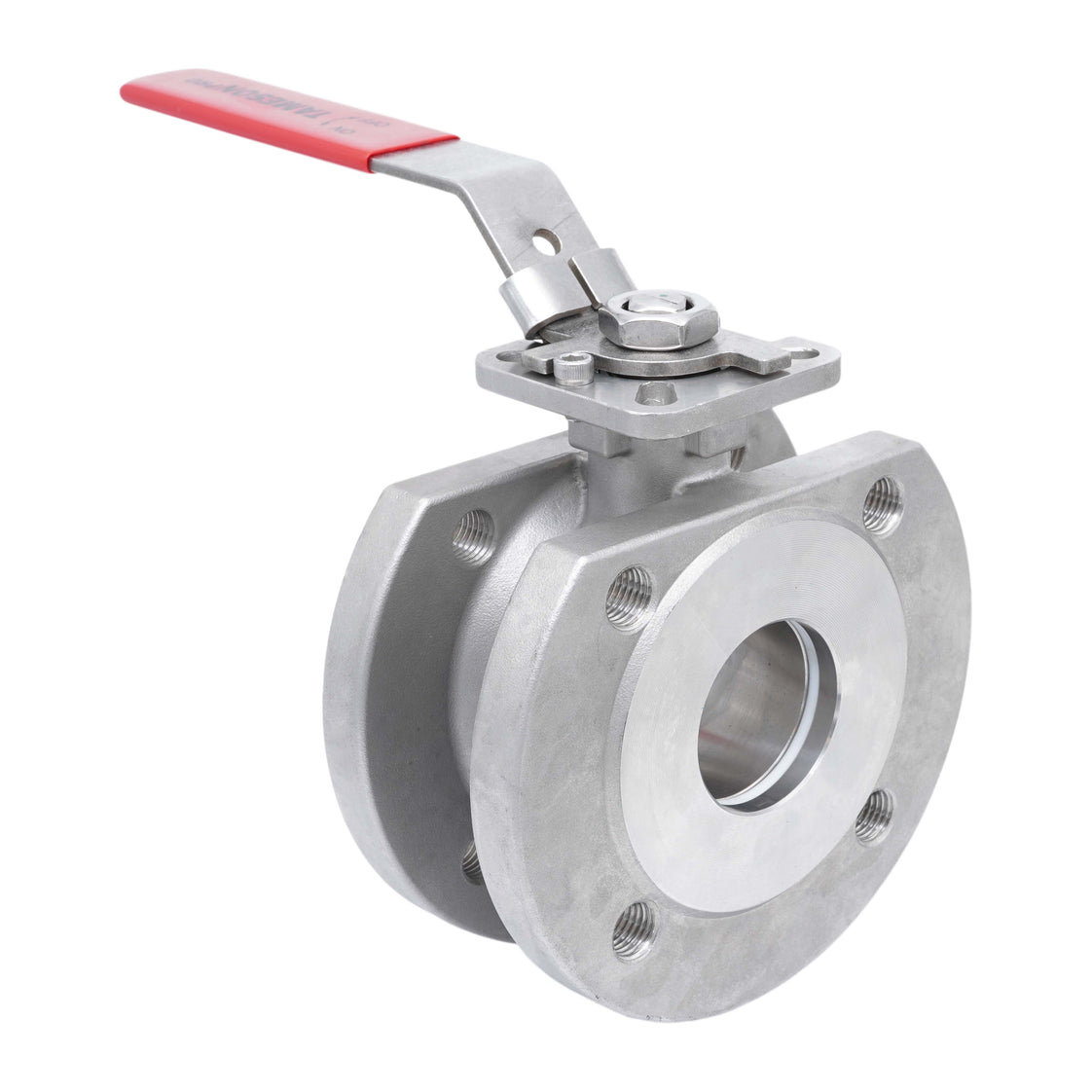

• Lockable handle prevents unauthorized tampering or accidental operation
• Suitable for electrical or pneumatic actuation thanks to the ISO-top F04

Dimensions

DN=25mm, d=25mm, D=115mm, C=68mm, D1=85mm, T=9mm, f=2mm, L=50mm, h=11mm, H1=62mm, H=99mm, W=162mm, B=11mm, D3=42mm, D4=50mm, O3=6mm, O4=7 mm
