Doepke Twilight Switch - 09500046

Notice: This product is discontinued

Discontinued

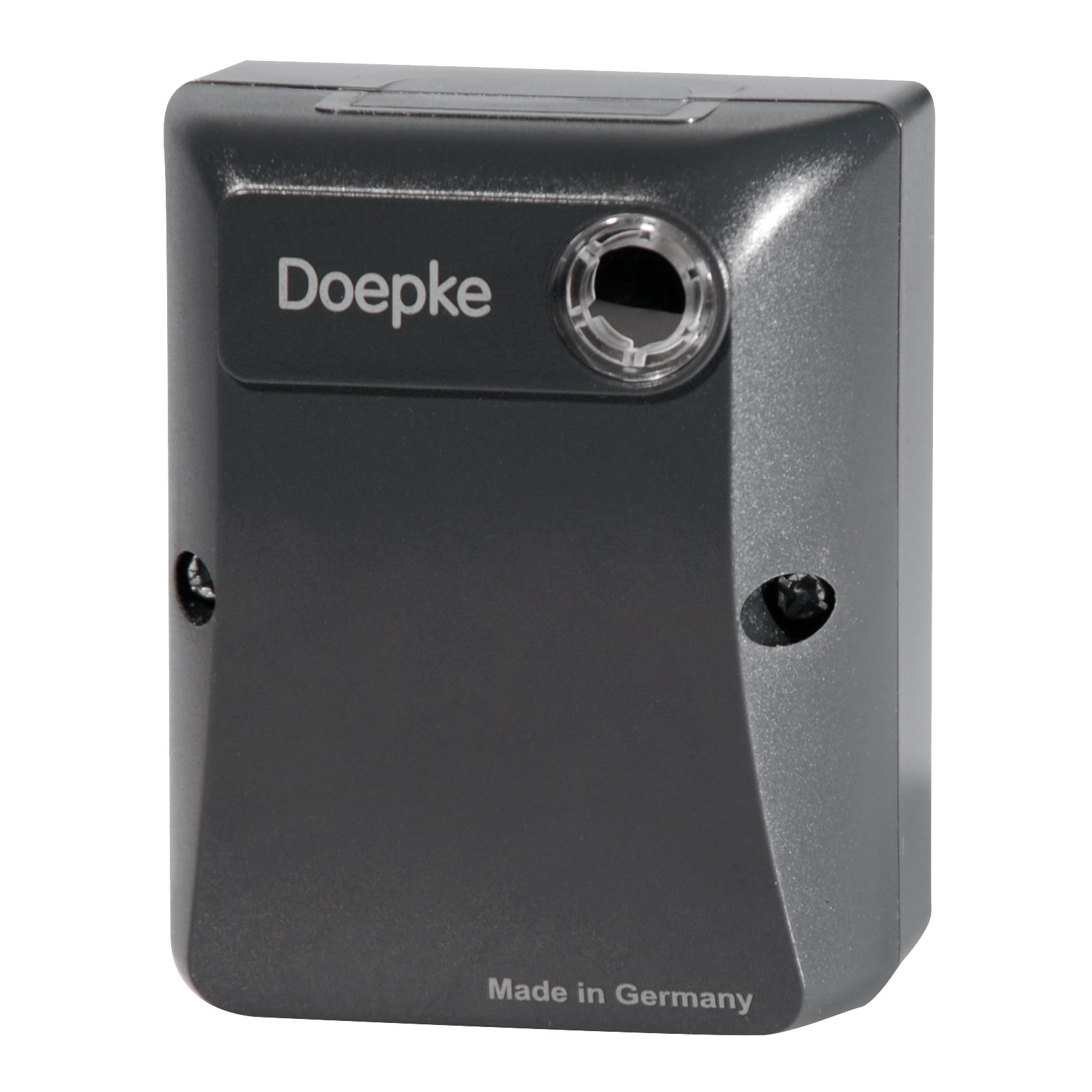

Doepke Twilight Switch - 09500046
Doepke Twilight Switch - 09500046
Image may vary slightly
See specifications for accurate information.
Reference: E3369
Brand: Doepke
Mfr. Part: 09500046

Doepke twilight switch, plastic, anthracite, (WxDxH) 70x53x90mm, surface mounted, sensor type light sensor built in, protection rating (IP) IP54, contacts 1 make contact, max. Switching capacity 4000W, operating temperature -25 - +45°C, width in module units (18mm) 1, energy saving.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Doepke twilight switch, plastic, anthracite, (WxDxH) 70x53x90mm, surface mounted, sensor type light sensor built in, protection rating (IP) IP54, contacts 1 make contact, max. Switching capacity 4000W, operating temperature -25 - +45°C, width in module units (18mm) 1, energy saving.

Downloads

Specifications

Type of sensor
Built-in light sensor
Contacts
1 make contact (NO)
Engaging brightness (lx)
1 lx to 200 lx
Switching-off brightness (lx)
1 lx to 200 lx
Switch-off delay (s)
40
Switching-on delay (s)
10
Max. switching power (W)
4000
Suitable for C-load
No
With automatic night switch-off
No
Mounting method
Surface mounted (plaster)
Swivelling
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
No
Surface protection
The type of surface protection of the component.
Untreated
Surface finishing
Matt
Color
Anthracite
RAL-number (similar)
7016
Transparent
No
Nominal voltage (V)
230
Max. switching current (resistive load) (A)
16
Operating temperature (°C)
-25 °C to 45 °C
Suitable for degree of protection (IP)
IP54
With DALI interface
No
Width (mm)
The product's width without packaging.
70
Height (mm)
The product's height without packaging.
90
Depth (mm)
The product's depth without packaging.
53
Diameter size (mm)
0
