Draka 9 Coaxial Cable - 131423P4 [100 Meters]

Notice: This product is discontinued

Discontinued
Draka 9 Coaxial Cable - 131423P4 [100 Meters]
Draka 9 Coaxial Cable - 131423P4 [100 Meters]

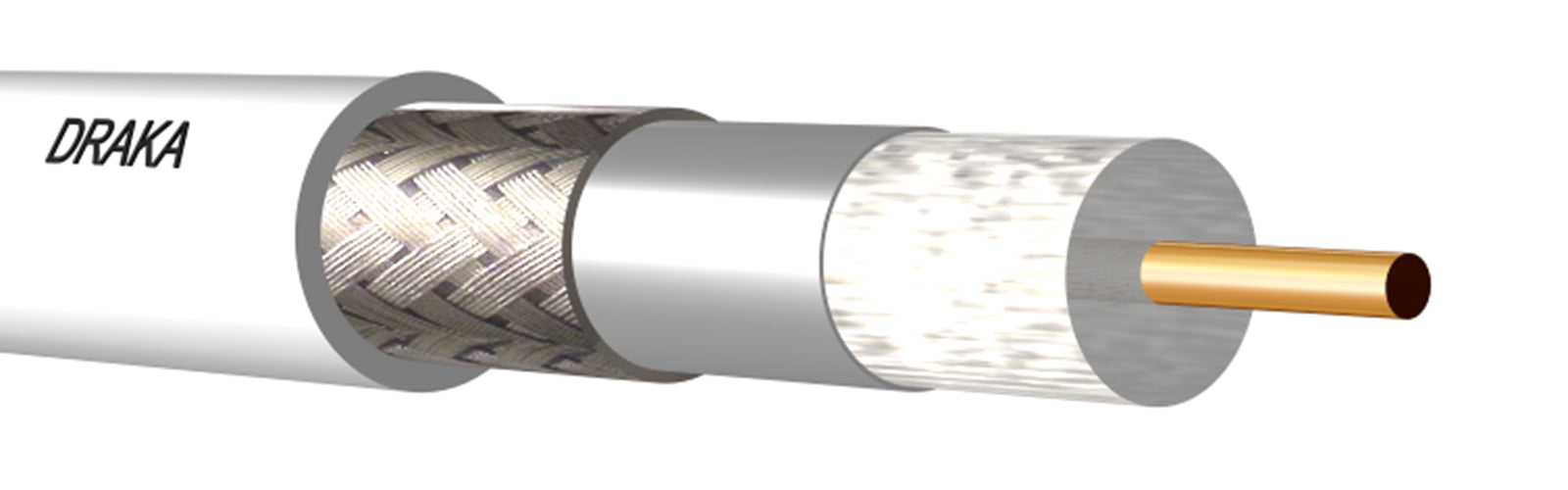

Image may vary slightly
See specifications for accurate information.
Reference: E34QK
Brand: Draka
Mfr. Part: 131423

Draka 9 Profipak coaxial cable, cable type coax 9, jacket white, inner conductor class 1 = solid, CPR Euro fire class vlgs EN 13501-6 eca, jacket material polyvinyl chloride (PVC), outer diameter 6.8mm, inner conductor diameter 1.13mm, outer conductor diameter 5.5mm, characteristic impedance 75Ohm.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications

Description

ProfiPak COAX9 is a suitable drop cable for CATV networks, fixed installations, and satellite TV. This cable is primarily used in building installations, residential construction, and telecommunication networks.

Its ProfiPak packaging ensures the cable is stackable, easy to unwind, and efficient to process. The cable offers high screen attenuation of 90 dB that limits interference and ensures a very constant characteristic impedance for high signal quality.

However, the cable is exclusively designed for fixed installations. ProfiPak COAX9 meets fire grade Eca in accordance with NEN-EN 50575, making it suitable for use in buildings with a low fire risk as per NEN 8012.

Specifications

Diameter inner conductor (mm)
1.13
Inner conductor material
Copper
Inner conductor surface
Bare
Inner conductor category
Class 1 = solid
Diameter outer conductor (mm)
5.5
Outer conductor material
Copper
Outer conductor surface
Tinned
Type of outer conductor
Foil + braiding
Dielectric
Polyethylene, foamed (foam PE)
Number of screen layers
2
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
White
Reaction-to-fire class according to EN 13501-6
Eca
UV resistant
No
Characteristic impedance (Ohm)
75
Outer diameter approx. (mm)
6.8
Min. permitted bending radius, moving application with forced guidance (mm)
25
Min. permitted bending radius, moving application/free movement (mm)
25
Min. permitted bending radius, stationary application/permanent installation (mm)
35
Suitable for underground installation
No
