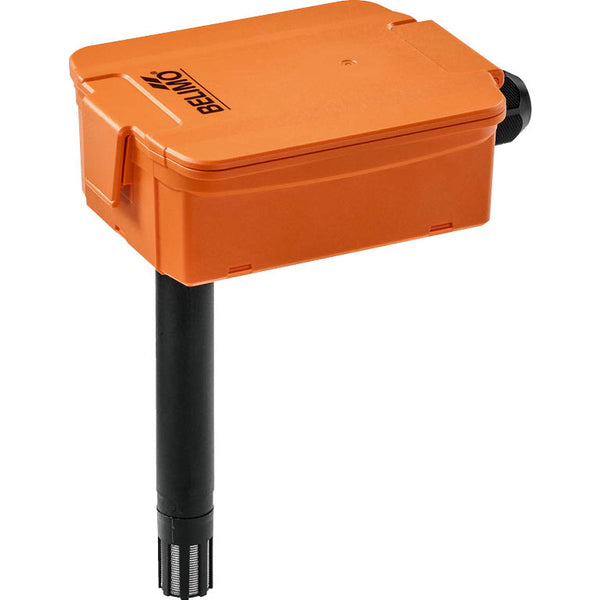

Belimo Duct Sensor Temperature Humidity 24VAC/DC Active 0-10V/0-5V 140mm/19.5mm 22DTH-16M
This duct sensor from Belimo is used for measuring relative humidity, absolute humidity, dew point, enthalpies and temperature. The sensor comes with a probe length of 140 mm and a diameter of 19.5mm. The output signal can be selected as either enthalpy or dewpoint, instead of the humidity signal. The duct sensor has the ability to measure a humidity range from 0 % to 100 % RH.The duct sensor is capable of measuring a temperature range from -20 and 80 °C (-4 and 176 °F). The sensor has a protection rating of IP65. The output signal is 0-5 V/0-10 V. The power supply voltage is 24 V AC/DC. This sensor is used for air applications.
- Regular price
- £202.74
Description
This duct sensor from Belimo is used for measuring relative humidity, absolute humidity, dew point, enthalpies and temperature. The sensor comes with a probe length of 140 mm and a diameter of 19.5mm. The output signal can be selected as either enthalpy or dewpoint, instead of the humidity signal. The duct sensor has the ability to measure a humidity range from 0 % to 100 % RH.The duct sensor is capable of measuring a temperature range from -20 and 80 °C (-4 and 176 °F). The sensor has a protection rating of IP65. The output signal is 0-5 V/0-10 V. The power supply voltage is 24 V AC/DC. This sensor is used for air applications.
Pros:
- Supports various output signals for seamless integration with building automation systems
- Up to eight selectable measuring ranges
- A sintered moisture protection coating on sensors shields against condensation, mechanical stress, and vibrations
