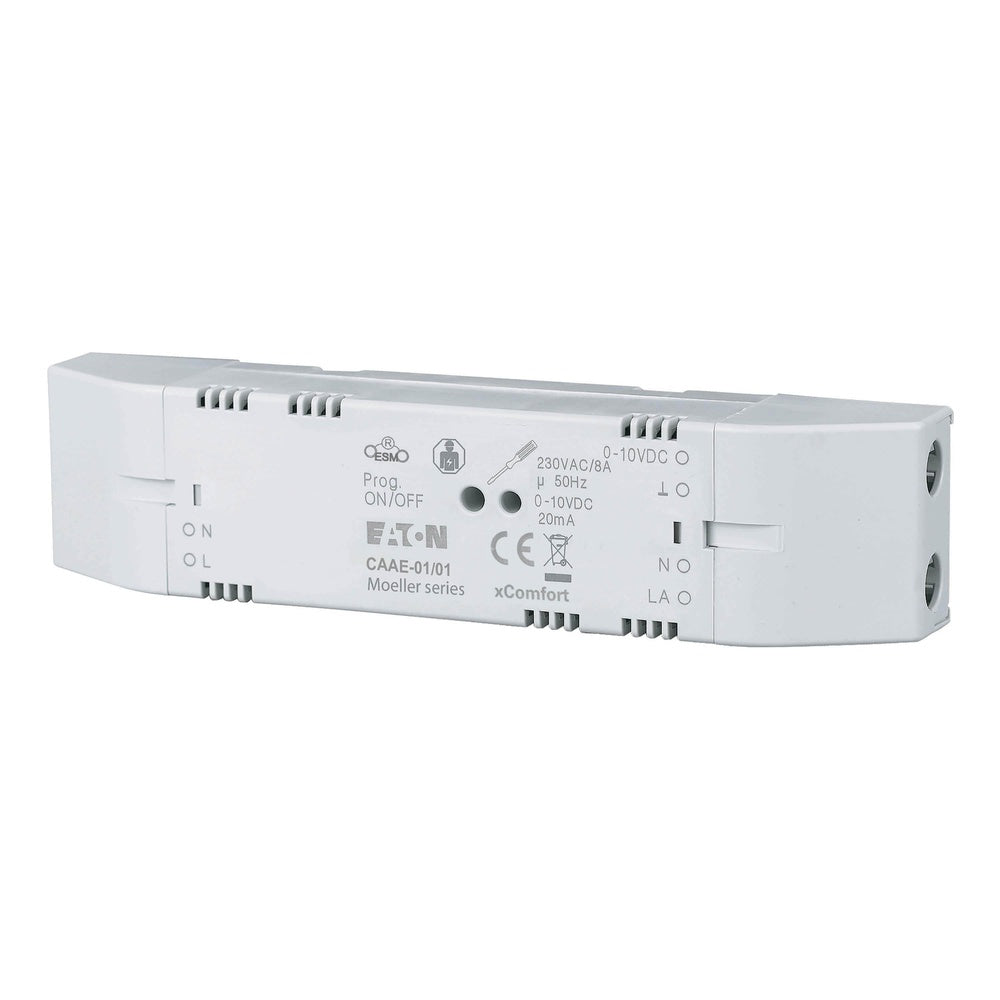

Eaton Analog Actuator 0-10VDC CAAE-01/01 XCOMF - 240697

Eaton Analog Actuator 0-10VDC CAAE-01/01 XCOMF - 240697
Eaton Analog Actuator 0-10VDC CAAE-01/01 XCOMF - 240697
Image may vary slightly
See specifications for accurate information.
Reference: E3N72
Brand: EATON INDUSTRIES
Mfr. Part: 240697

The Eaton Industries XComfort analog actuator is a base module bus system with one output and a protection degree of IP20. It operates with other xComfort bus systems by receiving and switching a relay and providing an output voltage of 0-10V, suitable for end devices such as mixers, heating systems, ventilation, dimmers, and more. With an output current of 20mA, LED indication, and a width in module units of 2, it's adaptable for use in an installation box, intermediate ceiling, or directly in the devices. The supply is performed via the mains.

View all
Note: product cannot be returned
£104.29
excl VAT
In stock Ships in 16d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 37 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 18 - 20 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

The Eaton Industries XComfort analog actuator is a base module bus system with one output and a protection degree of IP20. It operates with other xComfort bus systems by receiving and switching a relay and providing an output voltage of 0-10V, suitable for end devices such as mixers, heating systems, ventilation, dimmers, and more. With an output current of 20mA, LED indication, and a width in module units of 2, it's adaptable for use in an installation box, intermediate ceiling, or directly in the devices. The supply is performed via the mains.

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
xComfort
Mounting method
Other
Width in number of modular spacings
2
Model
Base module
With LED indication
Yes
With bus connection
Yes
Number of outputs
1
Output current (mA)
20 mA to 20 mA
Output voltage (V)
0 V to 10 V
Degree of protection (IP)i
IP20
Min. depth of built-in installation box (mm)
0
