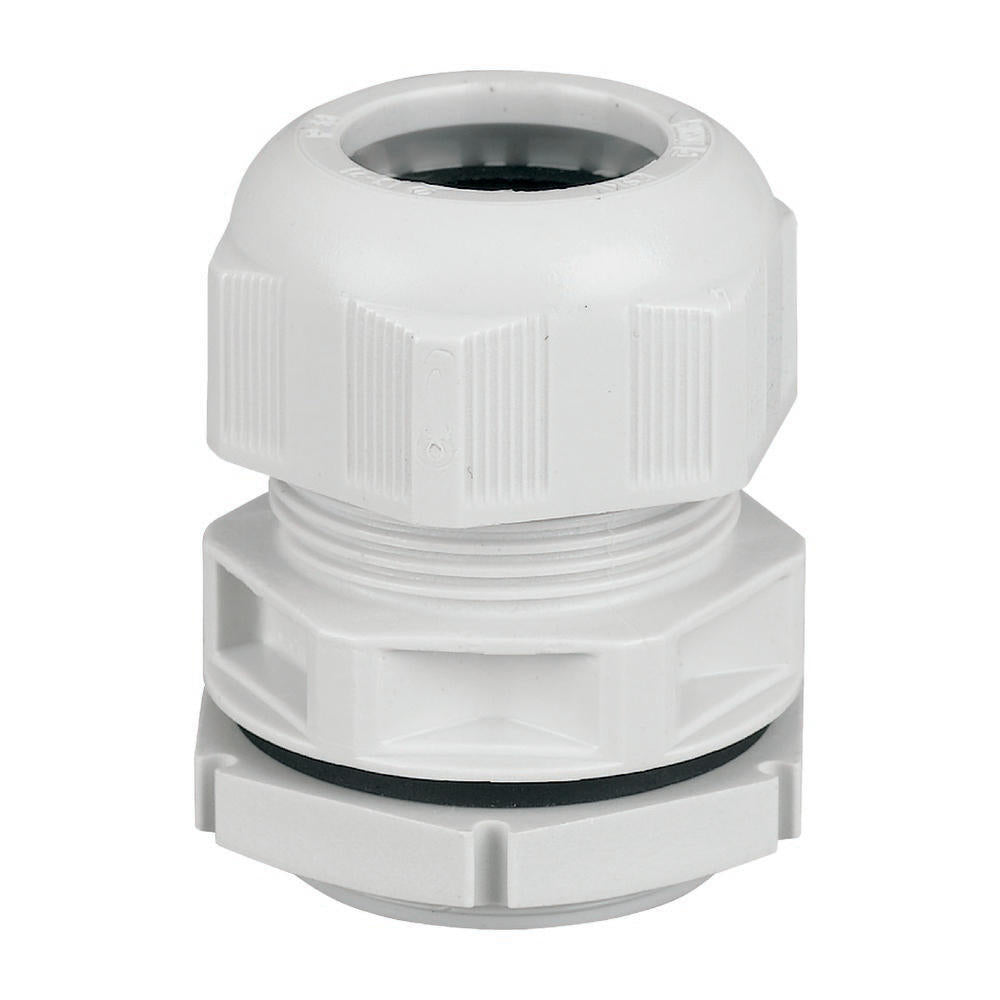

Eaton Cable Gland M16 RAL 7035 IP68 Grey - 215077 [20 Pieces]
![Eaton Cable Gland M16 RAL 7035 IP68 Grey - 215077 [20 Pieces]](http://tameson.co.uk/cdn/shop/files/e3dqq-00.d0954b73_e8f6e11e-e354-4e00-bd2f-5ab316bb5705.jpg?v=1716357589)
![Eaton Cable Gland M16 RAL 7035 IP68 Grey - 215077 [20 Pieces]](http://tameson.co.uk/cdn/shop/files/e3dqq-00.d0954b73_e8f6e11e-e354-4e00-bd2f-5ab316bb5705.jpg?height=232&v=1716357589&width=232)
This is an Eaton Industries Switchgear cable gland, with a right-angled cable and pipe entry, made up of grey polyamide plastic. It features a metric thread type, with a nominal thread size of metric/Pg 16 and another in inch NPT/gas pipe. The thread pitch is 1.5mm, with a thread length of 9mm. It also boasts a spanner width of 24mm. This product is specifically suitable to accommodate cable diameters ranging from 4.5mm to 10mm. The cable entry size is M16, with drilling dimensions being 16.5mm, making it ideal for use with NYM/NYY cables, including a 4-wire H05VV-F3x1.5. The cable gland provides a degree of protection of IP68 to 5 bars for 30 minutes. It comes with a lock nut, built-in strain relief, and is halogen-free. It complies with the RAL 7035 standard and holds a flammability classification of V2 according to UL94.
Contains 20 pieces
- Regular price
- £37.68
Description
This is an Eaton Industries Switchgear cable gland, with a right-angled cable and pipe entry, made up of grey polyamide plastic. It features a metric thread type, with a nominal thread size of metric/Pg 16 and another in inch NPT/gas pipe. The thread pitch is 1.5mm, with a thread length of 9mm. It also boasts a spanner width of 24mm. This product is specifically suitable to accommodate cable diameters ranging from 4.5mm to 10mm. The cable entry size is M16, with drilling dimensions being 16.5mm, making it ideal for use with NYM/NYY cables, including a 4-wire H05VV-F3x1.5. The cable gland provides a degree of protection of IP68 to 5 bars for 30 minutes. It comes with a lock nut, built-in strain relief, and is halogen-free. It complies with the RAL 7035 standard and holds a flammability classification of V2 according to UL94.
Contains 20 pieces
