Eaton Cable Gland M32 RAL 7035 IP68 Metric Entry - 206912 [2 pieces]

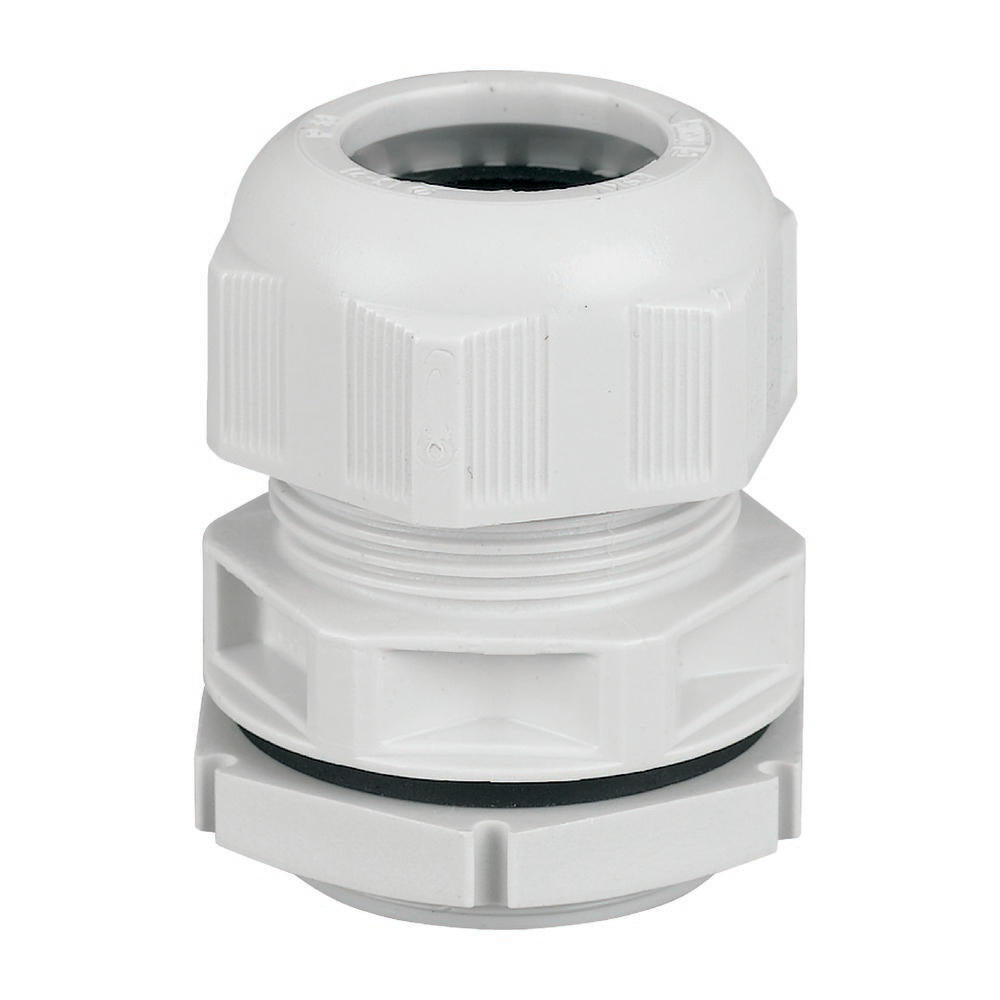

This is an Eaton Industries CI K cable gland with a direct cable/tube entry made of gray plastic. It features a metric thread type, nominal thread size of metric/Pg 32, nominal thread size in NPT/gas pipe size, thread pitch of 1.5mm, and a thread length of 12mm. The gland is suitable for a cable diameter of 13-21mm and has a key width of 50mm. It has a drilling dimension of 32.5mm and it's suitable for NYM/NYY cables, specifically a 4-wire NYM 5x10mm². The item offers an IP68 to 5 bar degree of protection for 30 minutes, is polyamide, halogen-free, and comes in an RAL 7035 color. It includes a lock nut and built-in strain relief, and has a flammability classification of V2 according to UL94.

Contains 2 pieces
