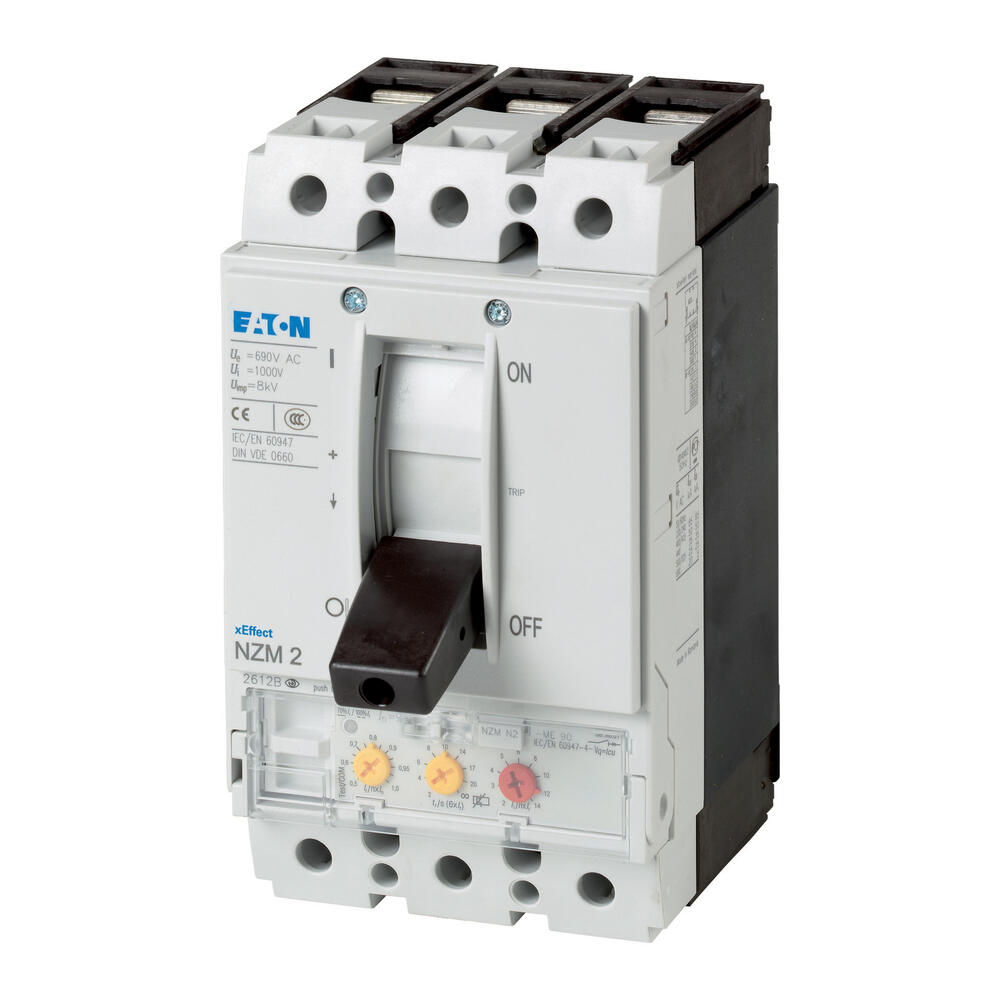

Eaton Circuit Breaker 3P 200A Box Terminals NZMH2-ME200-BT-NA - 142426
The Eaton Industries MCCB motor protector switch with dimensions 105x149x195mm, is adjustable within a 100-200A overload protection range. It has a nominal continuous current of 200A and employs an electronic disconnect technology. It offers a IP20 degree of protection. The circuit-breakers of the NZM..-ME..NA series span all applications across four compact sizes, relevant to the IEC market. Their modular nature allows flexible mounting. Equipped with electronic release for motor protection and phase failure sensitivity, they adhere to UL/CSA and IEC regulations and have IEC switching performance values on the rating plate. Suited for usage in motor circuits with a contactor, they have additional motor protective capabilities according to UL508, CSA-C22.2 No. 14-05, including adjustable overload releases Ir and a variable time delay setting to counter current peaks (2-20s at 6xIr).
- Regular price
- £2,186.64
Description
The Eaton Industries MCCB motor protector switch with dimensions 105x149x195mm, is adjustable within a 100-200A overload protection range. It has a nominal continuous current of 200A and employs an electronic disconnect technology. It offers a IP20 degree of protection. The circuit-breakers of the NZM..-ME..NA series span all applications across four compact sizes, relevant to the IEC market. Their modular nature allows flexible mounting. Equipped with electronic release for motor protection and phase failure sensitivity, they adhere to UL/CSA and IEC regulations and have IEC switching performance values on the rating plate. Suited for usage in motor circuits with a contactor, they have additional motor protective capabilities according to UL508, CSA-C22.2 No. 14-05, including adjustable overload releases Ir and a variable time delay setting to counter current peaks (2-20s at 6xIr).
