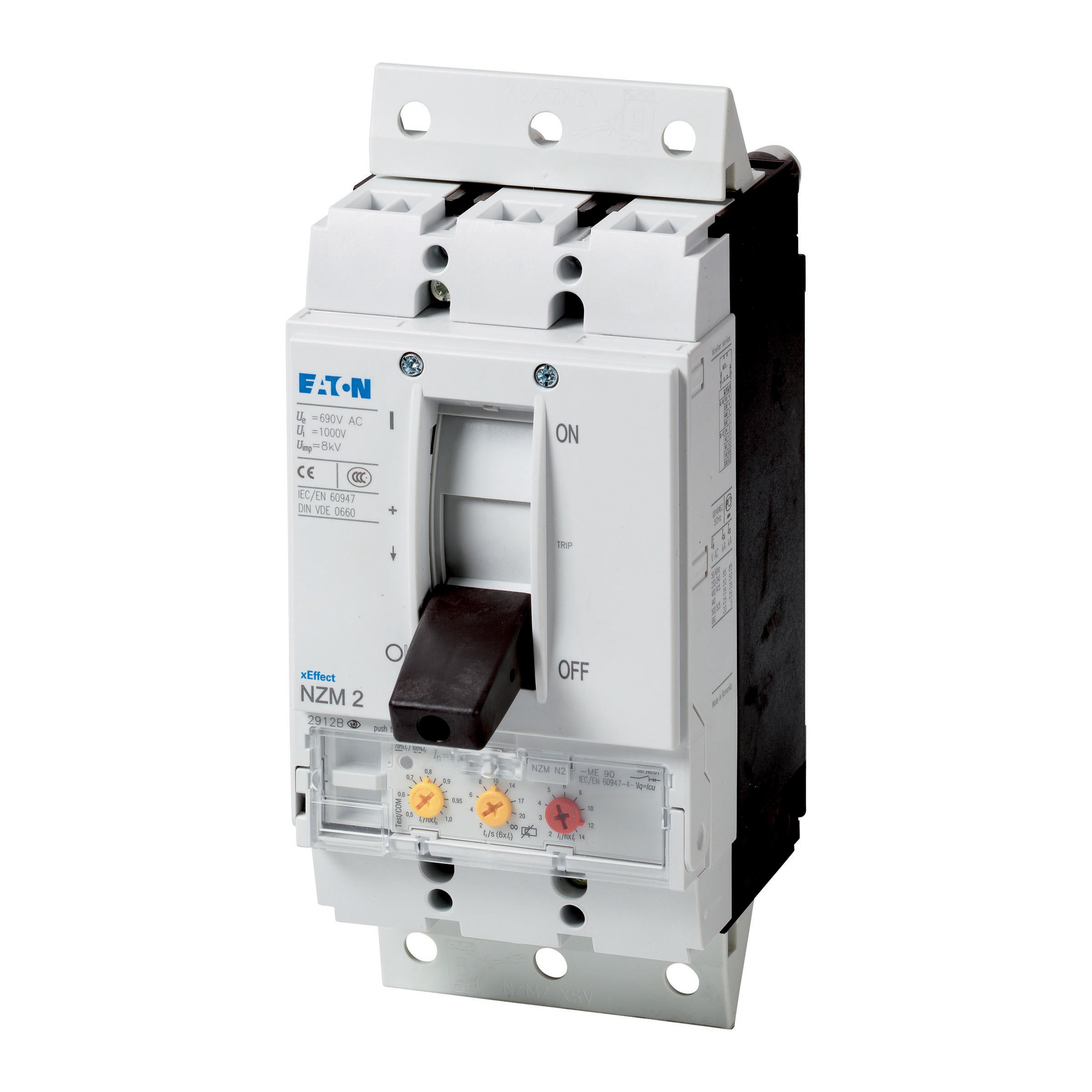

Eaton Circuit Breaker 3P 90A Plug-in Module NZM2 50kA - 113256
The Eaton Industries MCCB motor protective circuit breaker measures 105x180x245mm and features an overload protection adjustment range of 45 to 90A. The device comes in a plug-in design, suitable for continuous flow of 90A nominal current, and can be connected through a screw connection method to the main circuit. The device is equipped with an electronic disconnect mechanism and is designed for flexible mounting due to modular function groups. It boasts a motor protection system with phase failure sensitivity. Other notable features include IEC/EN 60947-4-1, IEC/EN 60947-2 adherence, r.m.s. value measurement, thermal memory, and adjustable time delay settings to manage current peaks of 2-20 at 6xIr, plus infinity (without overload release).
- Regular price
- £833.72
Description
The Eaton Industries MCCB motor protective circuit breaker measures 105x180x245mm and features an overload protection adjustment range of 45 to 90A. The device comes in a plug-in design, suitable for continuous flow of 90A nominal current, and can be connected through a screw connection method to the main circuit. The device is equipped with an electronic disconnect mechanism and is designed for flexible mounting due to modular function groups. It boasts a motor protection system with phase failure sensitivity. Other notable features include IEC/EN 60947-4-1, IEC/EN 60947-2 adherence, r.m.s. value measurement, thermal memory, and adjustable time delay settings to manage current peaks of 2-20 at 6xIr, plus infinity (without overload release).
