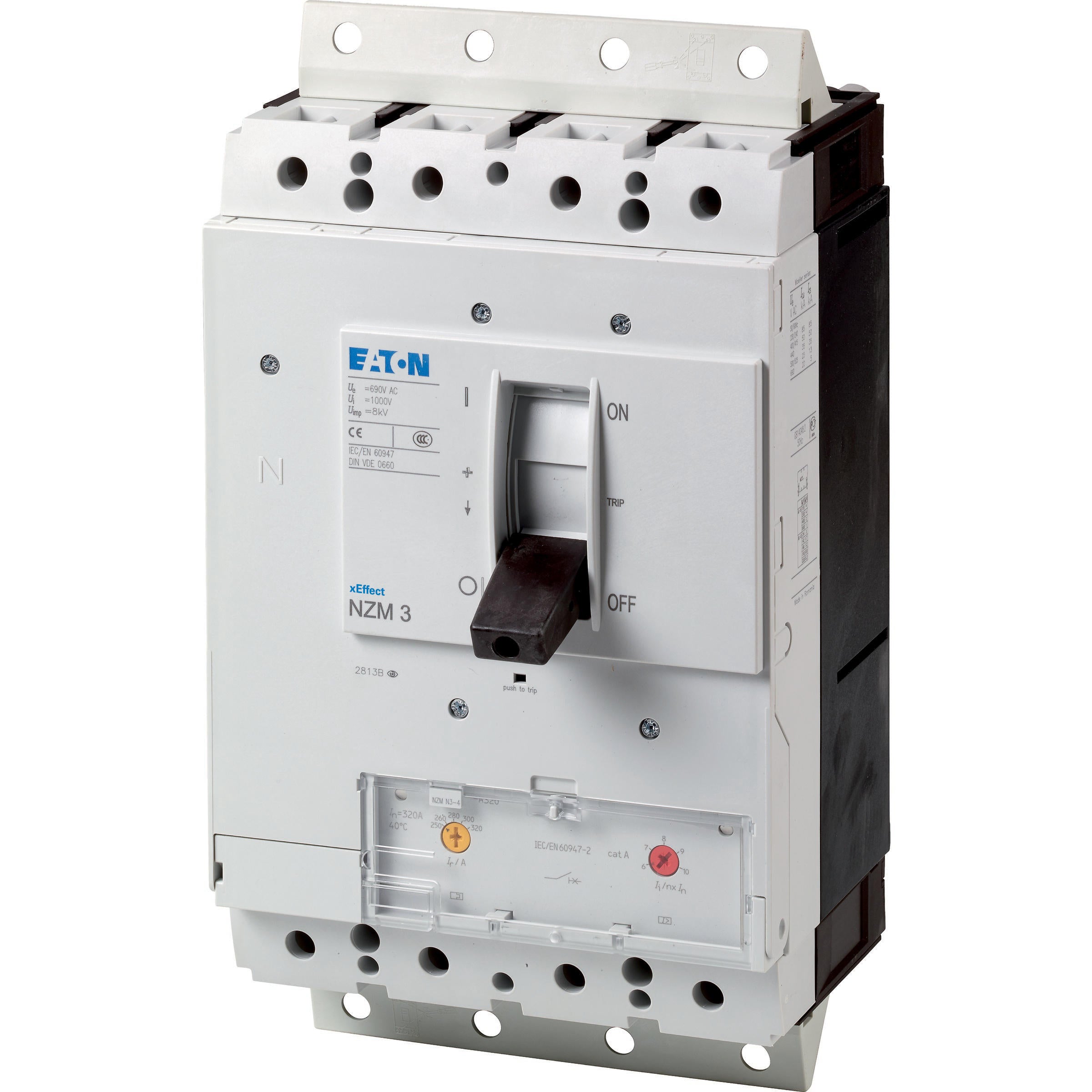

Eaton Circuit Breaker 4P 320A Plug-In Module NZMN3-4-A320-SVE - 168508
The Eaton Industries MCCB power switch is rated for a nominal continuous current of 320A and a nominal voltage of 690V. It features a nominal cut-off capacity of 50kA at 400, along with an adjustable overload protection range of 250 - 320A and an undelayed short circuit range of 1920 - 19200A. This device also offers a built-in mechanism for insertion. The NZM..-A series circuit-breakers span all application cases with just four compact sizes, suitable for the IEC market. They are designed to provide flexible mounting through modular function groups and include thermomagnetic releases for systems and cable protection. Notably, the set value in the neutral conductor operates in sync with the set value Ir of the phase conductor.
- Regular price
- £1,954.79
Description
The Eaton Industries MCCB power switch is rated for a nominal continuous current of 320A and a nominal voltage of 690V. It features a nominal cut-off capacity of 50kA at 400, along with an adjustable overload protection range of 250 - 320A and an undelayed short circuit range of 1920 - 19200A. This device also offers a built-in mechanism for insertion. The NZM..-A series circuit-breakers span all application cases with just four compact sizes, suitable for the IEC market. They are designed to provide flexible mounting through modular function groups and include thermomagnetic releases for systems and cable protection. Notably, the set value in the neutral conductor operates in sync with the set value Ir of the phase conductor.
