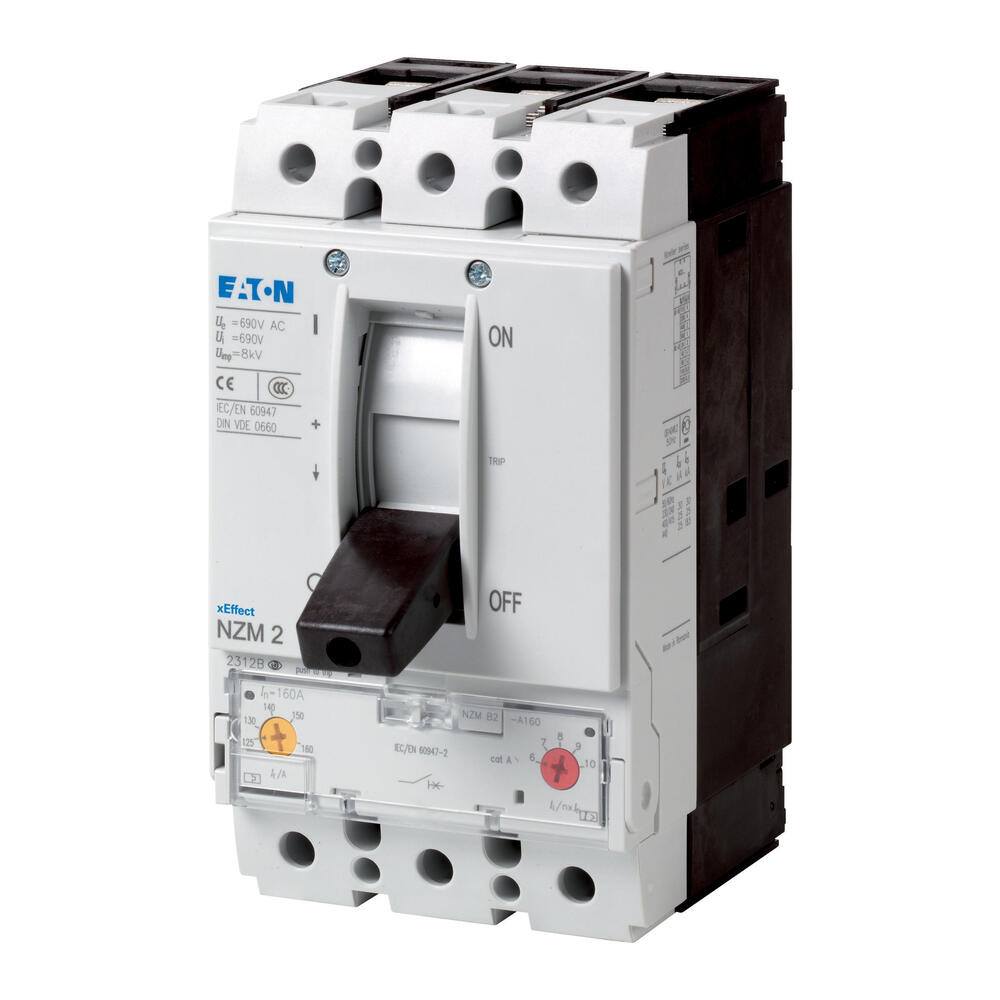

Eaton Circuit-Breaker NZMB2-A125 NZM2 3P 125A 25KA - 259087
The Eaton Industries NZMB A is a circuit-breaker designed according to IEC/EN60947-2 standards. It features screw connections and screw fixing, with a Ui of 690V and a degree of protection of IP20. The device is finger proof as per VDE 0106 T. 100. It comes with an adjustable overload release Ir ranging from 0.8 to 1 x In. The short-circuit release Ii is adjustable, ranging from 6 to 10 x In and there is a permanently set short-circuit release Ii as a limitation. The unit's nominal continuous current Iu is 125A and the nominal voltage is 440V. Its nominal cut-off capacity at Icu at 400 is 25kA. The overload protection setting range is 100-125A, while the instantaneous short circuit setting range is 750-1250A. The device is a fixed installation construction type. Available accessories include auxiliary contact modules, voltage release, remote operator, mounting accessories, terminal type, and system housing adapter.
- Regular price
- £406.82
Description
The Eaton Industries NZMB A is a circuit-breaker designed according to IEC/EN60947-2 standards. It features screw connections and screw fixing, with a Ui of 690V and a degree of protection of IP20. The device is finger proof as per VDE 0106 T. 100. It comes with an adjustable overload release Ir ranging from 0.8 to 1 x In. The short-circuit release Ii is adjustable, ranging from 6 to 10 x In and there is a permanently set short-circuit release Ii as a limitation. The unit's nominal continuous current Iu is 125A and the nominal voltage is 440V. Its nominal cut-off capacity at Icu at 400 is 25kA. The overload protection setting range is 100-125A, while the instantaneous short circuit setting range is 750-1250A. The device is a fixed installation construction type. Available accessories include auxiliary contact modules, voltage release, remote operator, mounting accessories, terminal type, and system housing adapter.
