Eaton Conductor Connection Terminal 1.5-16mm2 - 10mm - 107191 [5 pieces]

Eaton Conductor Connection Terminal 1.5-16mm2 - 10mm - 107191 [5 pieces]
Eaton Conductor Connection Terminal 1.5-16mm2 - 10mm - 107191 [5 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3EUX-X5
Brand: EATON INDUSTRIES
Mfr. Part: 107191

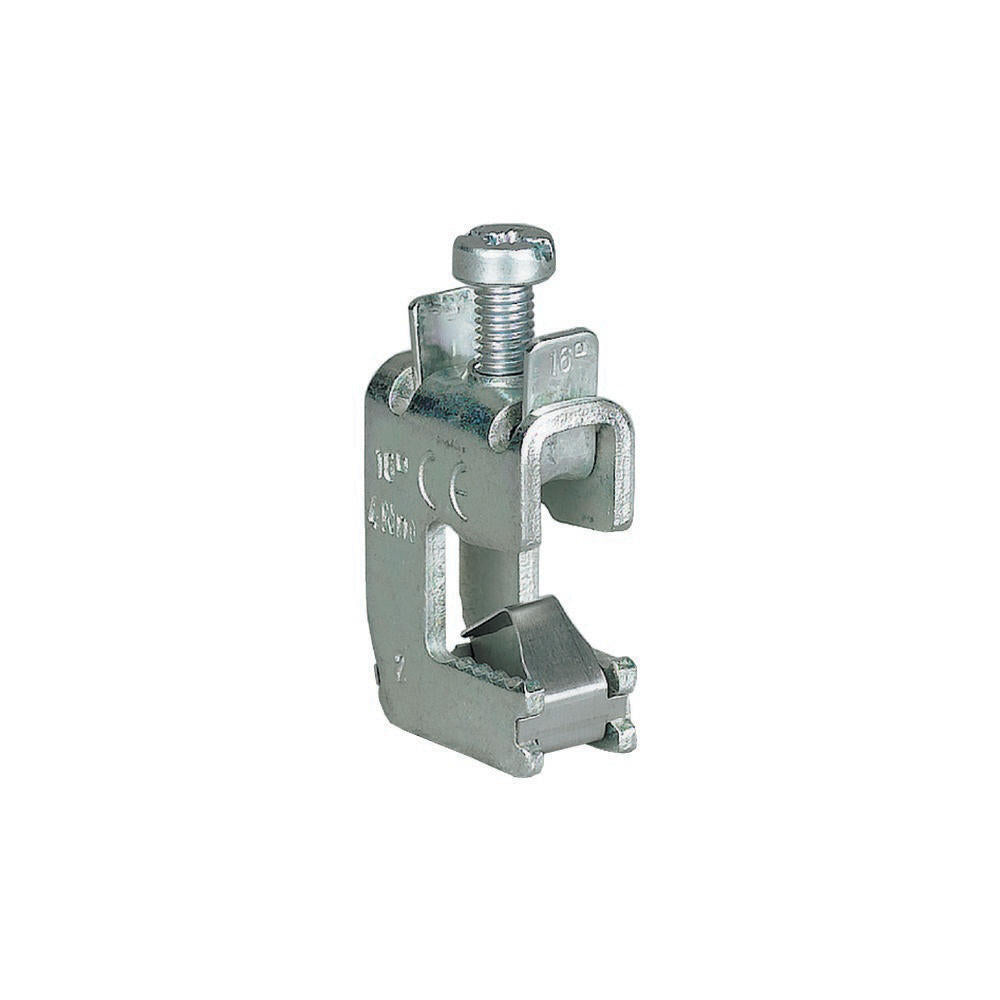

The Eaton Industries XBoard Rail System conductor connection terminal is designed for a 10mm thick flat busbar with a terminal width of 11.5mm. It has a maximum wire cross-section of 16mm² and a maximum operating current of 180A. The terminal is directly terminable, with dimensions of 8x6x0.5. It accommodates conductor connection ranging between 1.5-16mm² AWG 14-AWG 6. This terminal features an integrated retaining spring, an open terminal chamber, and a captive fixing screw, making it suitable for connections with flat tapes, round and sector conductors. It can also be used with SASY60i and SASY185i.

Contains 5 pieces

View all
£6.66
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 20 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications

Description

The Eaton Industries XBoard Rail System conductor connection terminal is designed for a 10mm thick flat busbar with a terminal width of 11.5mm. It has a maximum wire cross-section of 16mm² and a maximum operating current of 180A. The terminal is directly terminable, with dimensions of 8x6x0.5. It accommodates conductor connection ranging between 1.5-16mm² AWG 14-AWG 6. This terminal features an integrated retaining spring, an open terminal chamber, and a captive fixing screw, making it suitable for connections with flat tapes, round and sector conductors. It can also be used with SASY60i and SASY185i.

Specifications
