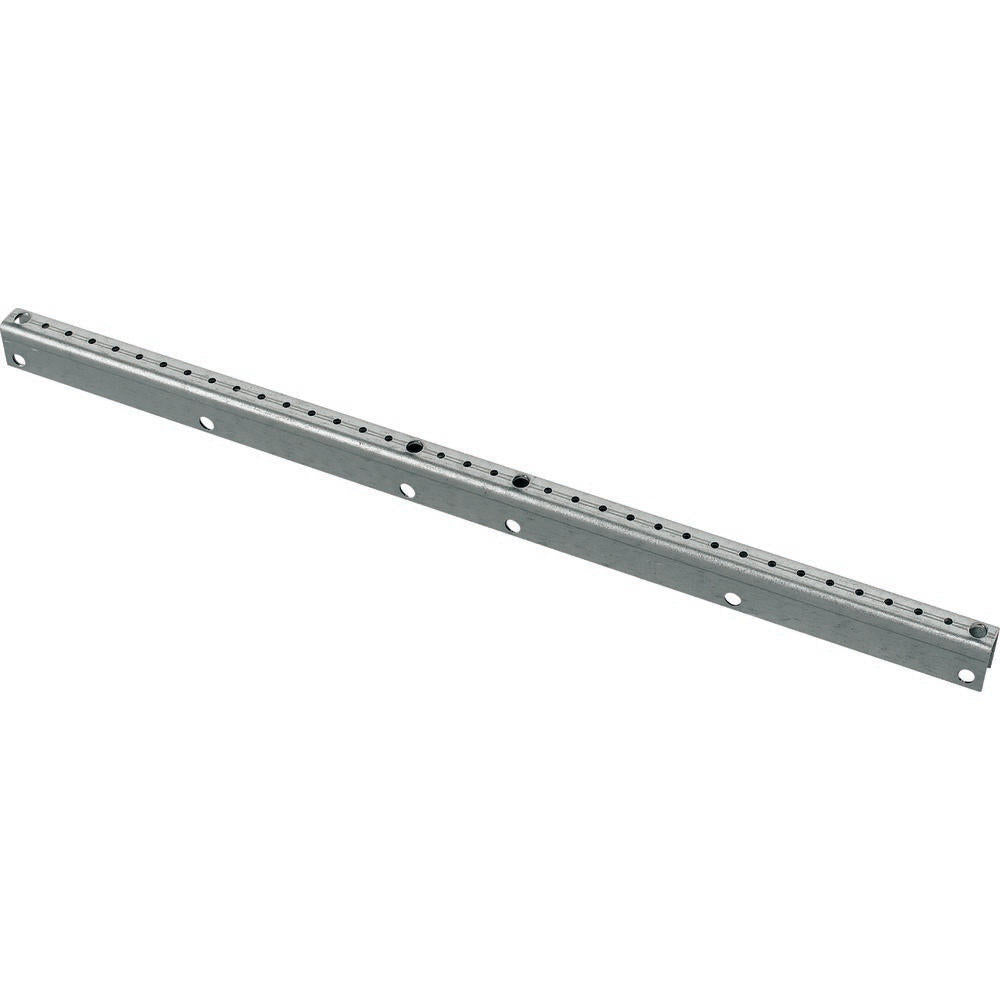

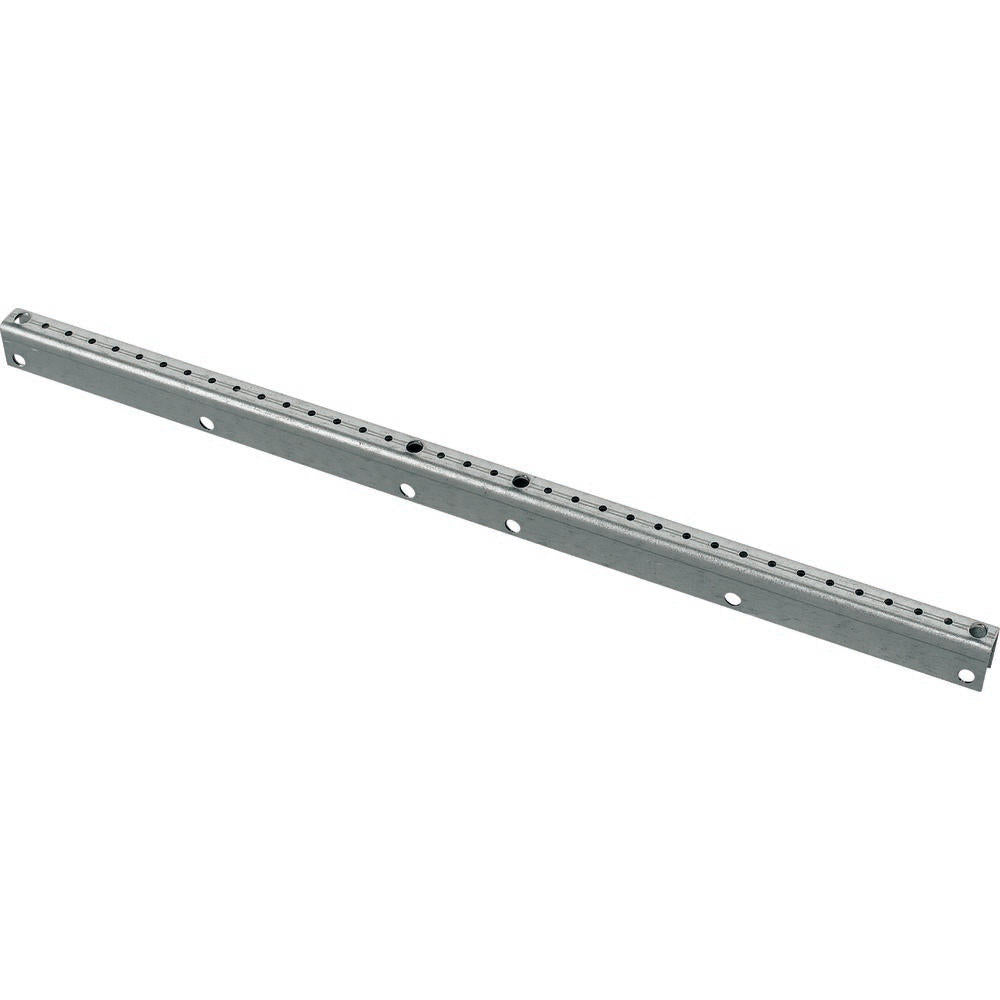

Eaton EPTH250 Horizontal Mounting Rail 215mm Module Width 250mm - 143851

Eaton EPTH250 Horizontal Mounting Rail 215mm Module Width 250mm - 143851
Eaton EPTH250 Horizontal Mounting Rail 215mm Module Width 250mm - 143851
Image may vary slightly
See specifications for accurate information.
Reference: E3J6B
Brand: EATON INDUSTRIES
Mfr. Part: 143851

The Eaton Industries XBoard XVTL EP profile is intended for use with cabinets and lecterns. Constructed from steel, it has a length of 16mm and is designed with a metric system. It is secured through a screw mounting process and comes with a profile carriage rail height of 16mm. The surface is finished with a zinc coating. This profile is part of the standard flush-mounting EP system, which is utilised for the surface mounting of meticulously factory finished, type-tested switchgear assemblies.

View all
Note: product cannot be returned
£6.84
excl VAT
In stock +48 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 48 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 50 - 52 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile is intended for use with cabinets and lecterns. Constructed from steel, it has a length of 16mm and is designed with a metric system. It is secured through a screw mounting process and comes with a profile carriage rail height of 16mm. The surface is finished with a zinc coating. This profile is part of the standard flush-mounting EP system, which is utilised for the surface mounting of meticulously factory finished, type-tested switchgear assemblies.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
215
Height (mm)
The product's height without packaging.
16
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.175
