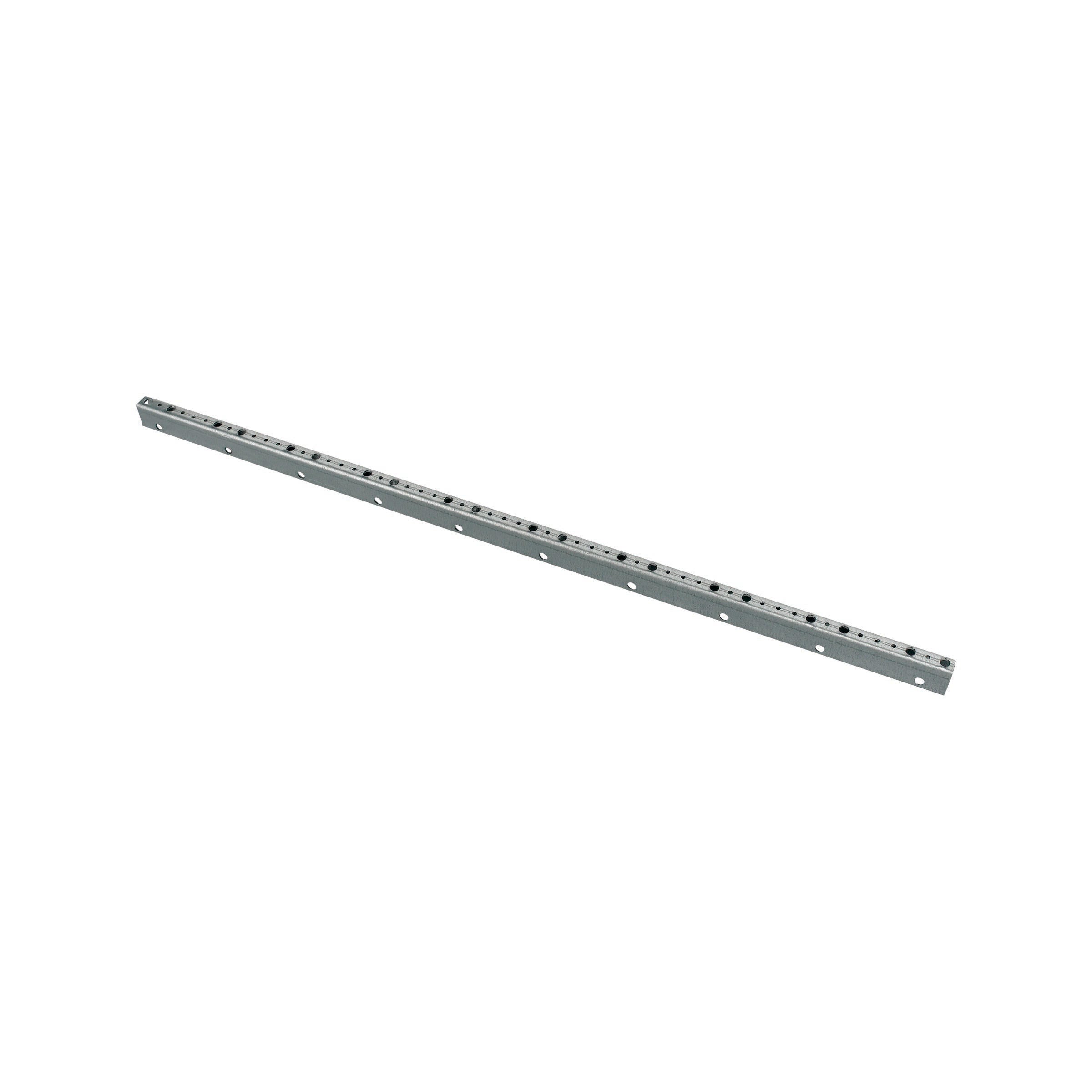

Eaton EPTV1200 Vertical Mounting Rail Mid 1165mm - 143845

Eaton EPTV1200 Vertical Mounting Rail Mid 1165mm - 143845
Eaton EPTV1200 Vertical Mounting Rail Mid 1165mm - 143845
Image may vary slightly
See specifications for accurate information.
Reference: E3J67
Brand: EATON INDUSTRIES
Mfr. Part: 143845

The Eaton Industries XBoard XVTL EP profile is designed for cabinet or pedestal use. Constructed from steel, it is metric with a length of 1165mm. The method of attachment is screw fixation. This device features a profile height carrying rail measuring 1165mm and a galvanized surface finish for enhanced durability. This standard flush-mounting EP product is optimized for surface mounting and is a factory-finished, type-tested switchgear assembly system.

View all
Note: product cannot be returned
£15.28
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 18 - 20 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile is designed for cabinet or pedestal use. Constructed from steel, it is metric with a length of 1165mm. The method of attachment is screw fixation. This device features a profile height carrying rail measuring 1165mm and a galvanized surface finish for enhanced durability. This standard flush-mounting EP product is optimized for surface mounting and is a factory-finished, type-tested switchgear assembly system.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
16
Height (mm)
The product's height without packaging.
1165
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.949
