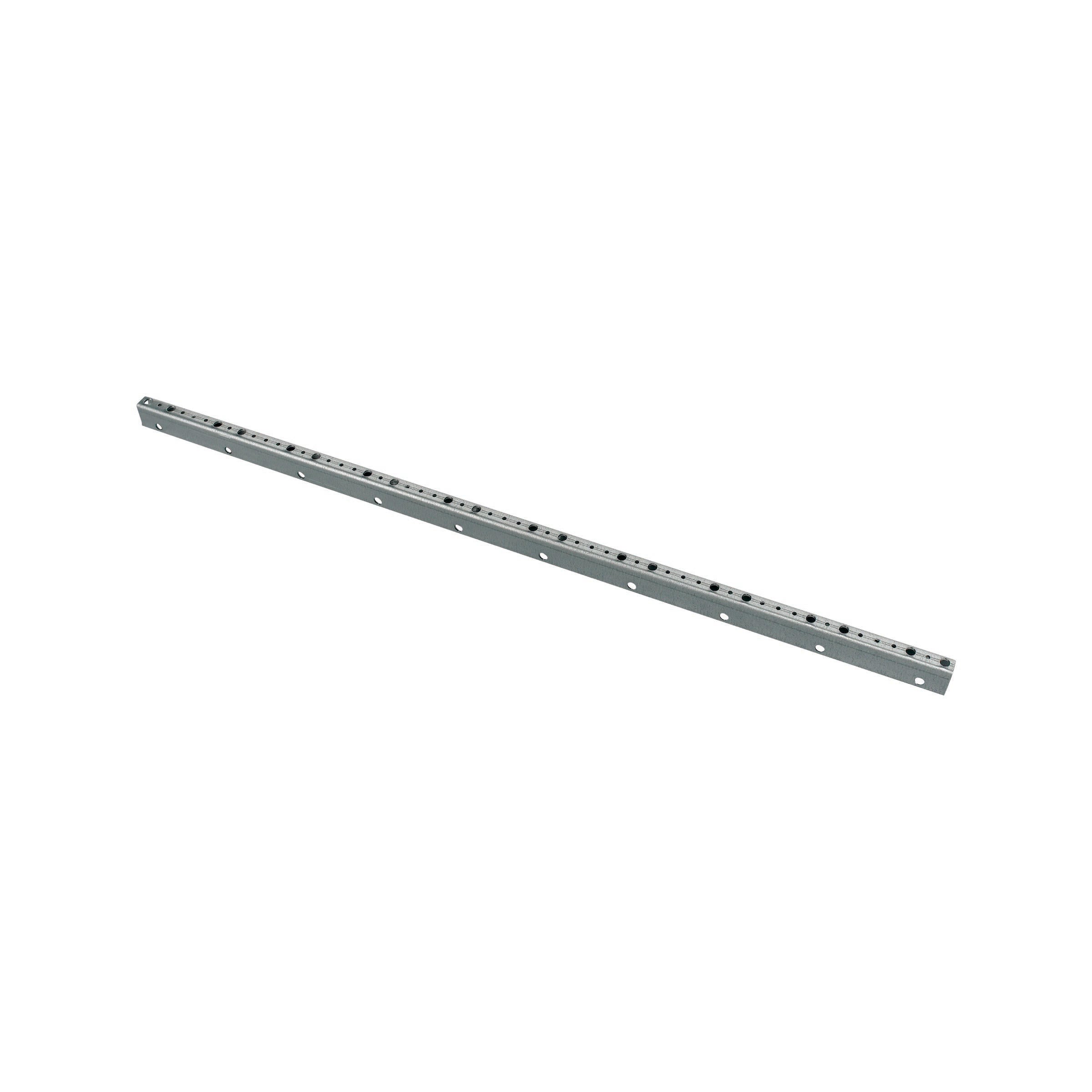

Eaton EPTV900 Vertical Mounting Rail Mid 865mm - 143843

Eaton EPTV900 Vertical Mounting Rail Mid 865mm - 143843
Eaton EPTV900 Vertical Mounting Rail Mid 865mm - 143843
Image may vary slightly
See specifications for accurate information.
Reference: E3J66
Brand: EATON INDUSTRIES
Mfr. Part: 143843

The Eaton Industries XBoard XVTL EP profile is designed for cabinet or desk mount, made from steel, and measures 865mm in length. This profile features a metric design and employs a screw mounting system. The profile height of the carrier rail is also 865mm. The surface of the profile has a zinc-plated finish for enhanced durability. On a broader scale, it forms part of the standard flush-mounting EP system, which is used for surface mounting of factory finished, type-tested switchgear assemblies.

View all
Note: product cannot be returned
£12.13
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 18 - 20 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile is designed for cabinet or desk mount, made from steel, and measures 865mm in length. This profile features a metric design and employs a screw mounting system. The profile height of the carrier rail is also 865mm. The surface of the profile has a zinc-plated finish for enhanced durability. On a broader scale, it forms part of the standard flush-mounting EP system, which is used for surface mounting of factory finished, type-tested switchgear assemblies.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
16
Height (mm)
The product's height without packaging.
865
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.704
