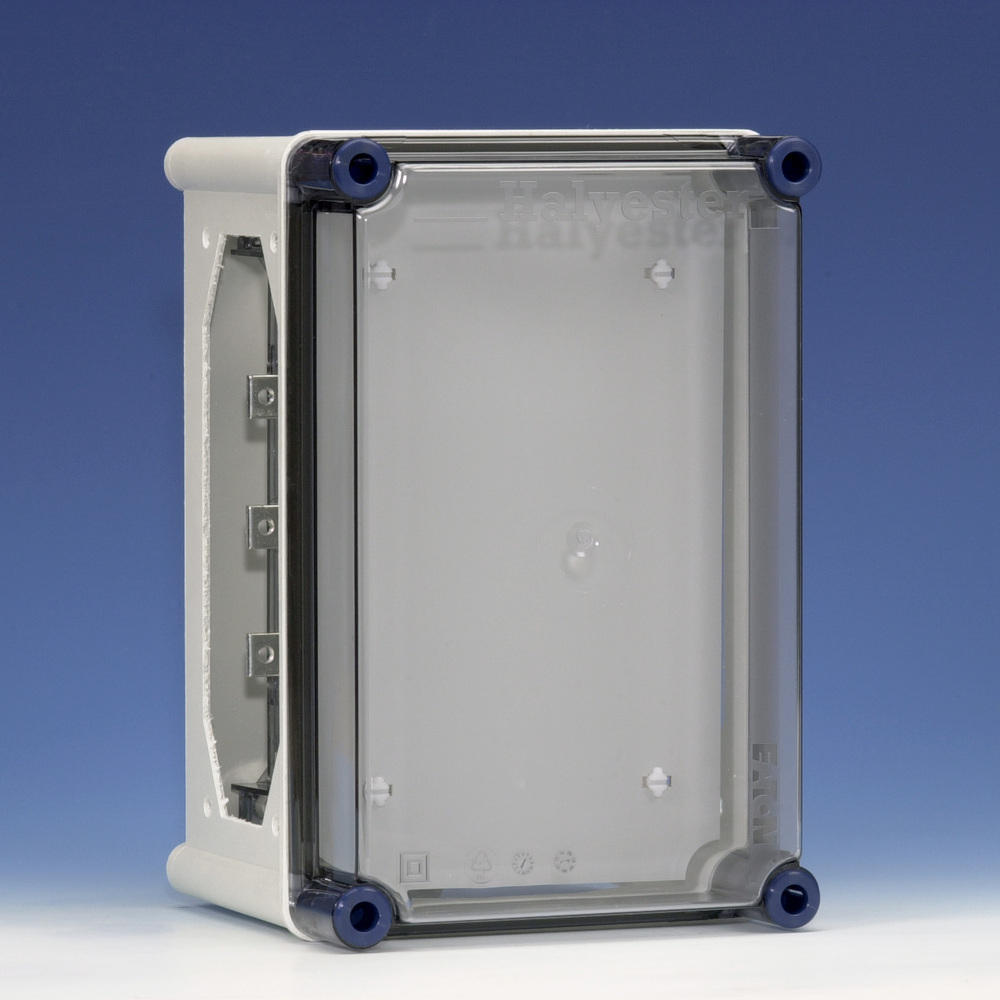

EATON INDUSTRIES Halyester Rail Cabinet - 1860815

EATON INDUSTRIES Halyester Rail Cabinet - 1860815
EATON INDUSTRIES Halyester Rail Cabinet - 1860815
Image may vary slightly
See specifications for accurate information.
Reference: E2D9C
Brand: EATON INDUSTRIES
Mfr. Part: 1860815

Rail junction boxes are designed for vertical mounting of a power supply cabinet or side mounting of group boxes with an integrated rail system. This is a Halyester busbar junction box up to 250 amps maximum for central power supply. As for the single-side power supply, 160 amps is maximum and one rail per cabinet is available for 3 phases, neutral and ground. Furthermore, this RG 432 rail junction box has cabinet openings on all four sides (see image) and these are top and bottom sized number 2 and side sized number 3.

View all
£154.88
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Rail junction boxes are designed for vertical mounting of a power supply cabinet or side mounting of group boxes with an integrated rail system. This is a Halyester busbar junction box up to 250 amps maximum for central power supply. As for the single-side power supply, 160 amps is maximum and one rail per cabinet is available for 3 phases, neutral and ground. Furthermore, this RG 432 rail junction box has cabinet openings on all four sides (see image) and these are top and bottom sized number 2 and side sized number 3.

Downloads

Specifications

Equipped with busbar
Yes
Rated current rail system (A)
250
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Height (mm)
The product's height without packaging.
205
Width (mm)
The product's width without packaging.
185
Depth (mm)
The product's depth without packaging.
275
Busbar distance (mm)
44
Extension possible
Yes
Mounting method
Other
With transparent cover
Yes
Short-circuit breaking capacity (Icw) (kA)
10
Number of poles
5
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66
Degree of protection (NEMA)
Other
