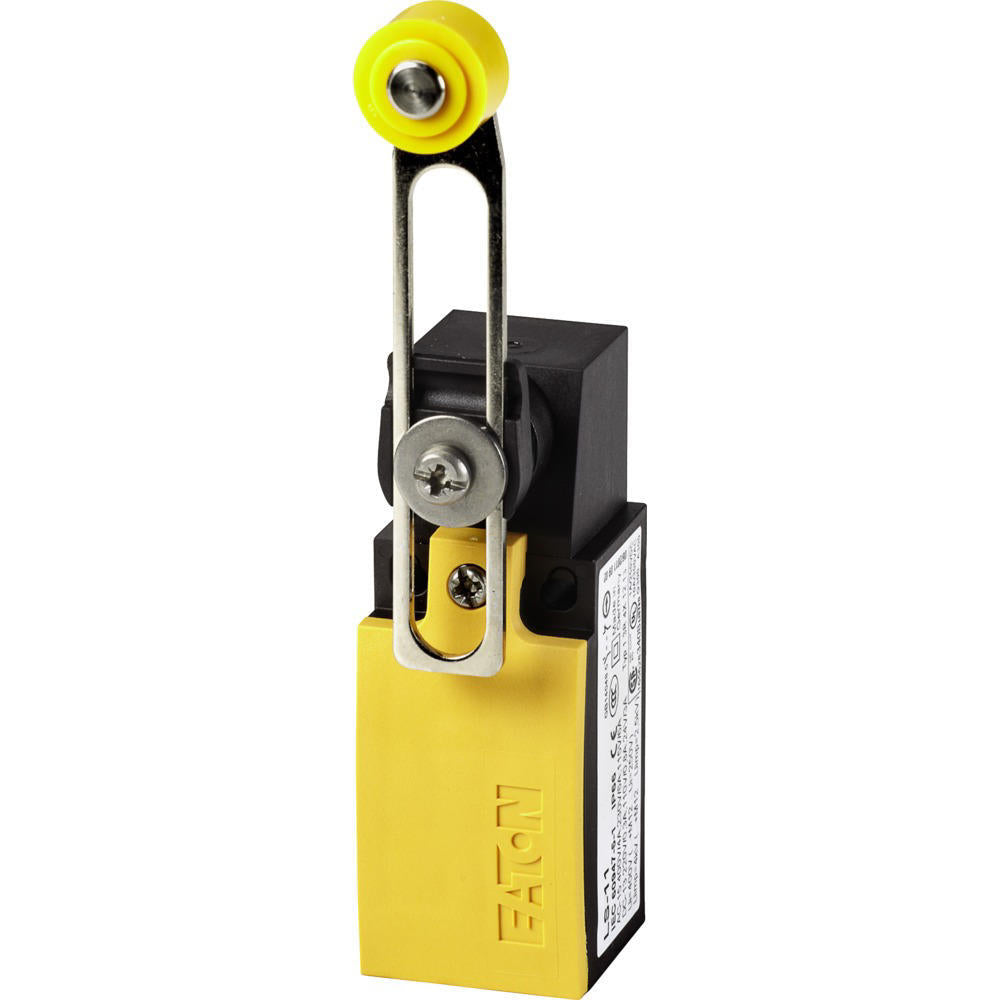

EATON INDUSTRIES LS Limit Switch - 266119

EATON INDUSTRIES LS Limit Switch - 266119
EATON INDUSTRIES LS Limit Switch - 266119
Image may vary slightly
See specifications for accurate information.
Reference: E2FS9
Brand: EATON INDUSTRIES
Mfr. Part: 266119

Eaton Moeller series LS Position switch, Adjustable roller lever, Complete unit, 1 N/O, 1 NC, Snap-action contact - Yes, Cage Clamp, Yellow, Insulated material, -25 - +70 °C.

View all
£33.82
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eaton Moeller series LS Position switch, Adjustable roller lever, Complete unit, 1 N/O, 1 NC, Snap-action contact - Yes, Cage Clamp, Yellow, Insulated material, -25 - +70 °C.

Downloads

Specifications

Width sensor (mm)
31
Height of sensor (mm)
61
Length of sensor (mm)
33.5
Rated operation current Ie at AC-15, 24 V (A)
6
Rated operation current Ie at AC-15, 125 V (A)
6
Rated operation current Ie at AC-15, 230 V (A)
6
Rated operation current Ie at DC-13, 24 V (A)
3
Rated operation current Ie at DC-13, 125 V (A)
0.8
Rated operation current Ie at DC-13, 230 V (A)
0.3
Switching function
Quick-break switch
Switching function latching
No
Output electronic
No
Forced opening
Yes
Number of safety auxiliary contacts
1
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Coating housing
Other
Type of control element
Adjustable rotary lever
Alignment of the control element
Other
Electrical connection
Type of electric connection.
Cable entry metrical
Status indication
No
Suitable for safety functions
Yes
Explosion safety gas
None
Explosion safety dust
None
Ambient temperature during operating (°C)
25 °C to 70 °C
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66/IP67
Degree of protection (NEMA)
Other
