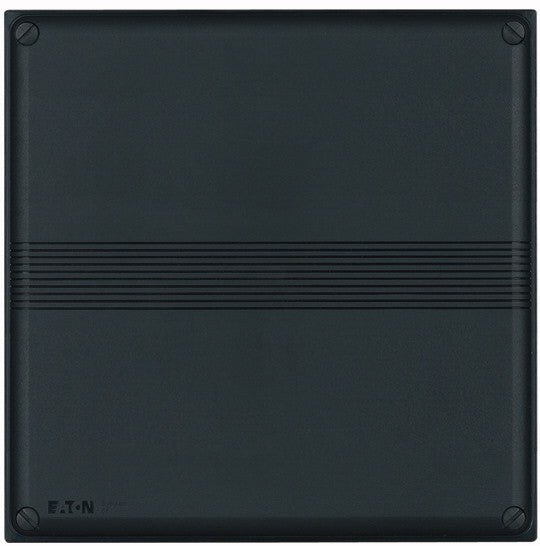

EATON INDUSTRIES System 55 Rail Cabinet - 1959046

EATON INDUSTRIES System 55 Rail Cabinet - 1959046
EATON INDUSTRIES System 55 Rail Cabinet - 1959046
Image may vary slightly
See specifications for accurate information.
Reference: E2R2M
Brand: EATON INDUSTRIES
Mfr. Part: 1959046

This busbar cabinet from Eaton Holec's System 55 series is up to 63 amps (63A single-sided, 125A central) and features 5 rails (12x3mm). In addition, the track box has a plastic housing and opaque lid. The dimensions of the rail cabinet are 110 millimeters in height, 220 millimeters in width and 79 millimeters in depth. Furthermore, the System 55 busbar box has a protection rating of IP3X and is equipped with 4 connection points.

View all
£72.27
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This busbar cabinet from Eaton Holec's System 55 series is up to 63 amps (63A single-sided, 125A central) and features 5 rails (12x3mm). In addition, the track box has a plastic housing and opaque lid. The dimensions of the rail cabinet are 110 millimeters in height, 220 millimeters in width and 79 millimeters in depth. Furthermore, the System 55 busbar box has a protection rating of IP3X and is equipped with 4 connection points.

Downloads

Other Documentation (EN)
pdf
Download

Specifications

Equipped with busbar
Yes
Rated current rail system (A)
63
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Height (mm)
The product's height without packaging.
98
Width (mm)
The product's width without packaging.
115
Depth (mm)
The product's depth without packaging.
225
Busbar distance (mm)
20
Extension possible
Yes
Mounting method
Surface mounted (plaster)
With transparent cover
No
Short-circuit breaking capacity (Icw) (kA)
25
Number of poles
3
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP3X
Degree of protection (NEMA)
Other
