EATON INDUSTRIES TR Bell Transformer - 272483

Notice: This product is discontinued

Discontinued
EATON INDUSTRIES TR Bell Transformer - 272483
EATON INDUSTRIES TR Bell Transformer - 272483

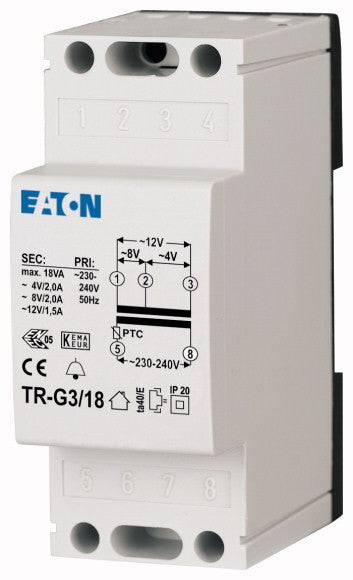

Image may vary slightly
See specifications for accurate information.
Reference: E29A8
Brand: EATON INDUSTRIES
Mfr. Part: 272483

Eaton Industries TR G bell transformer, (LxWxH) 55x36x90mm, primary voltage 230V, secondary voltage 1 4V, secondary voltage 2 8V, secondary voltage 3 12V, secondary current 1 2A, secondary current 2 2A, secondary current 3 1.5A, type of transformer standard bell transformer.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Eaton Industries TR G bell transformer, (LxWxH) 55x36x90mm, primary voltage 230V, secondary voltage 1 4V, secondary voltage 2 8V, secondary voltage 3 12V, secondary current 1 2A, secondary current 2 2A, secondary current 3 1.5A, type of transformer standard bell transformer.

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Primary voltage (V)
230
Secondary voltage 1 (V)
4
Secondary voltage 2 (V)
8
Secondary voltage 3 (V)
12
Secondary amperage 1 (A)
2
Secondary amperage 2 (A)
2
Secondary amperage 3 (A)
1.5
Max. output power (W)
0
Max. output current (A)
0
Max. power loss (W)
0
Type of transformer
Standard bell ringing transformer
Surface mounting
Yes
Flush-mounted installation
No
Modular version
Yes
Length (mm)
55
Width (mm)
The product's width without packaging.
36
Height (mm)
The product's height without packaging.
90
Width in number of modular spacings
2
Short-circuit protected
Yes
Temperature protection
Yes
With on/off switch
No
