EATON INDUSTRIES TR Bell Transformer - 272484

Notice: This product is discontinued

Discontinued

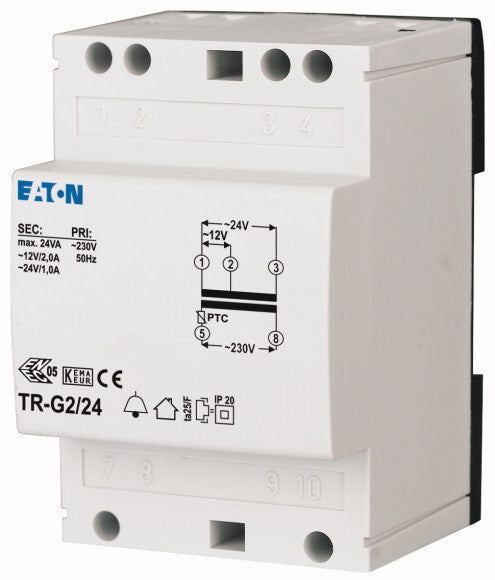

EATON INDUSTRIES TR Bell Transformer - 272484
EATON INDUSTRIES TR Bell Transformer - 272484
Image may vary slightly
See specifications for accurate information.
Reference: E299V
Brand: EATON INDUSTRIES
Mfr. Part: 272484

Eaton Industries TR G bell transformer, (LxWxH) 55x54x90mm, primary voltage 230V, secondary voltage 1 12V, secondary voltage 2 24V, secondary current 1 2A, secondary current 2 1A, type of transformer standard bell transformer, suitable for surface mounting (stucco).

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Eaton Industries TR G bell transformer, (LxWxH) 55x54x90mm, primary voltage 230V, secondary voltage 1 12V, secondary voltage 2 24V, secondary current 1 2A, secondary current 2 1A, type of transformer standard bell transformer, suitable for surface mounting (stucco).

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Primary voltage (V)
230
Secondary voltage 1 (V)
12
Secondary voltage 2 (V)
24
Secondary voltage 3 (V)
0
Secondary amperage 1 (A)
2
Secondary amperage 2 (A)
1
Secondary amperage 3 (A)
0
Max. output power (W)
0
Max. output current (A)
0
Max. power loss (W)
0
Type of transformer
Standard bell ringing transformer
Surface mounting
Yes
Flush-mounted installation
No
Modular version
Yes
Length (mm)
55
Width (mm)
The product's width without packaging.
54
Height (mm)
The product's height without packaging.
90
Width in number of modular spacings
3
Short-circuit protected
Yes
Temperature protection
Yes
With on/off switch
No
