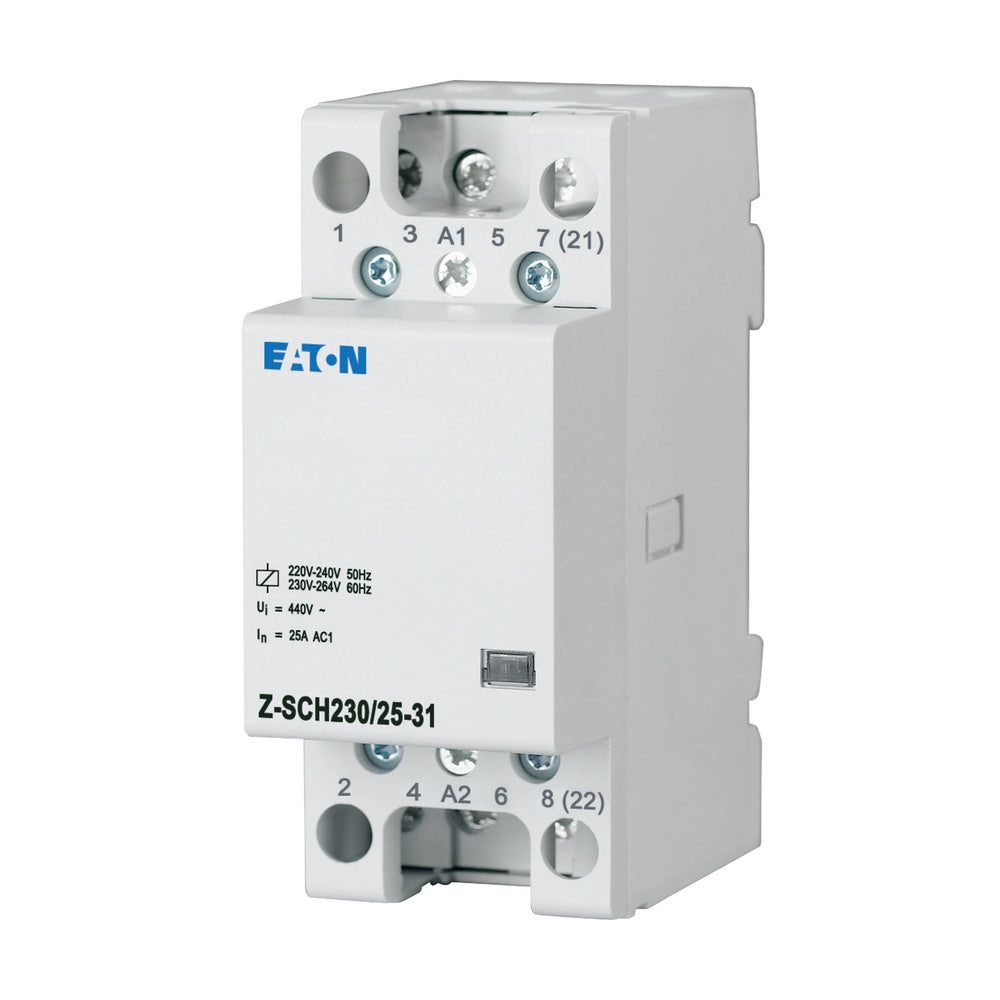

Eaton Installation Contactor 230VAC 50Hz 25A 3NO 1NC - 248846
The Eaton Industries Z SCH is a modular installation contactor with a rated operating current of 25A and control circuit voltage of 230V AC. It features a measuring voltage of 440V and an actuating voltage ranging from 195.5 to 253V. The type of voltage for both the operating and actuating circuits is AC. It is equipped with 3 make contacts and 1 break contact. Compliant with IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1 standards, it comes with a standard front dimension of 45mm and a mounting width of 2 SU (35mm), suitable for top-hat rail mounting.
- Regular price
- £52.67
Description
The Eaton Industries Z SCH is a modular installation contactor with a rated operating current of 25A and control circuit voltage of 230V AC. It features a measuring voltage of 440V and an actuating voltage ranging from 195.5 to 253V. The type of voltage for both the operating and actuating circuits is AC. It is equipped with 3 make contacts and 1 break contact. Compliant with IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1 standards, it comes with a standard front dimension of 45mm and a mounting width of 2 SU (35mm), suitable for top-hat rail mounting.
