Eaton IZM13 Busbar Partition Mounting Plate 800x600mm - 284103

Eaton IZM13 Busbar Partition Mounting Plate 800x600mm - 284103
Eaton IZM13 Busbar Partition Mounting Plate 800x600mm - 284103
Image may vary slightly
See specifications for accurate information.
Reference: E3F95
Brand: EATON INDUSTRIES
Mfr. Part: 284103
This Eaton Industries partition or mounting plate is designed for XP panels with 1/3 pitch. It has a depth of 200mm, a width of 800mm, and is 1.5mm th
View all
Note: product cannot be returned
£344.73
excl VAT
In stock +33 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 33 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 35 - 37 business days

Customers rate us: 4.81 / 5

387 reviews at TrustedShops

Description
Specifications

Description

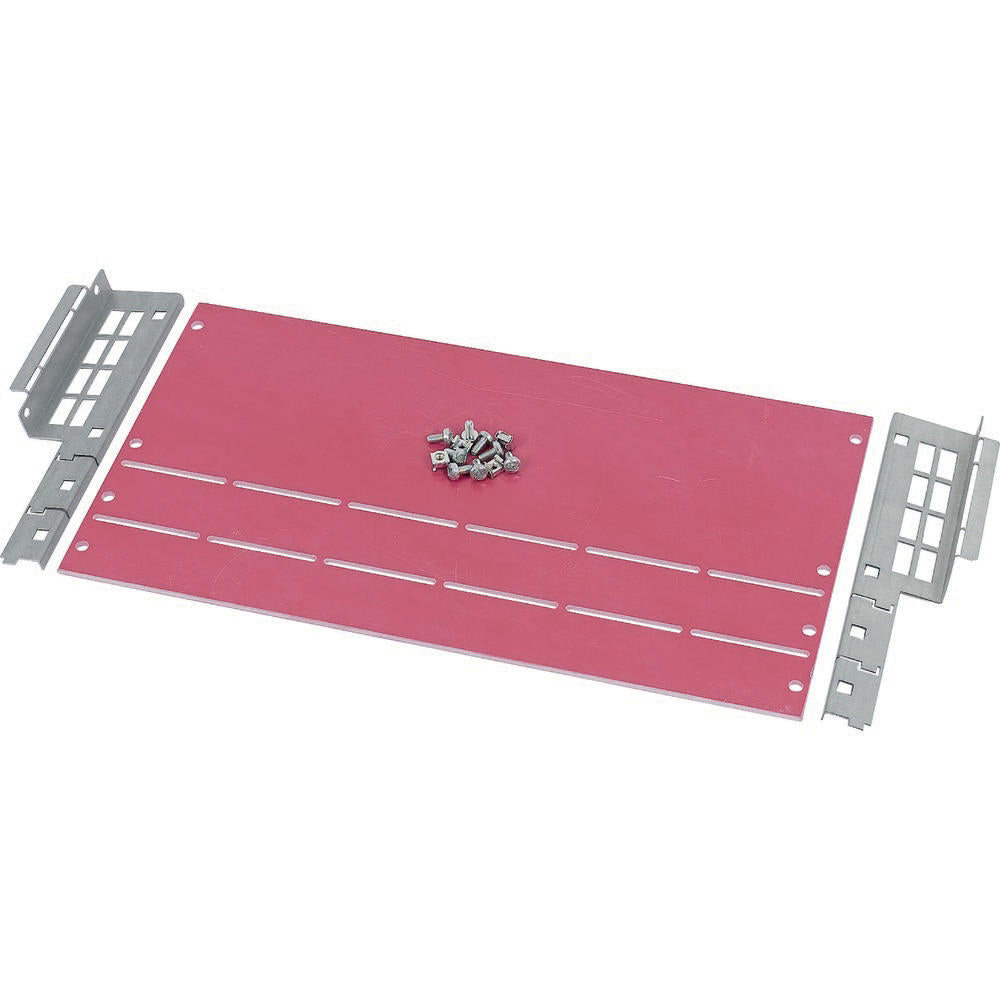

This Eaton Industries partition or mounting plate is designed for XP panels with 1/3 pitch. It has a depth of 200mm, a width of 800mm, and is 1.5mm thick. This mounting plate also features pre-cutouts on the right side for a cutout, which can provide access for the main busbar transport separation. The cut-out part can be rotated 180 degrees and screwed back onto the plate to close the hole. It also includes four mounting brackets and screw material.

Specifications

Modular spacing (mm)
12.5
Suitable for enclosure building width (mm)
800
Suitable for enclosure building depth (mm)
600
Width (mm)
The product's width without packaging.
350
Height (mm)
The product's height without packaging.
30
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Surface finishing
Other
Color
Other
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
