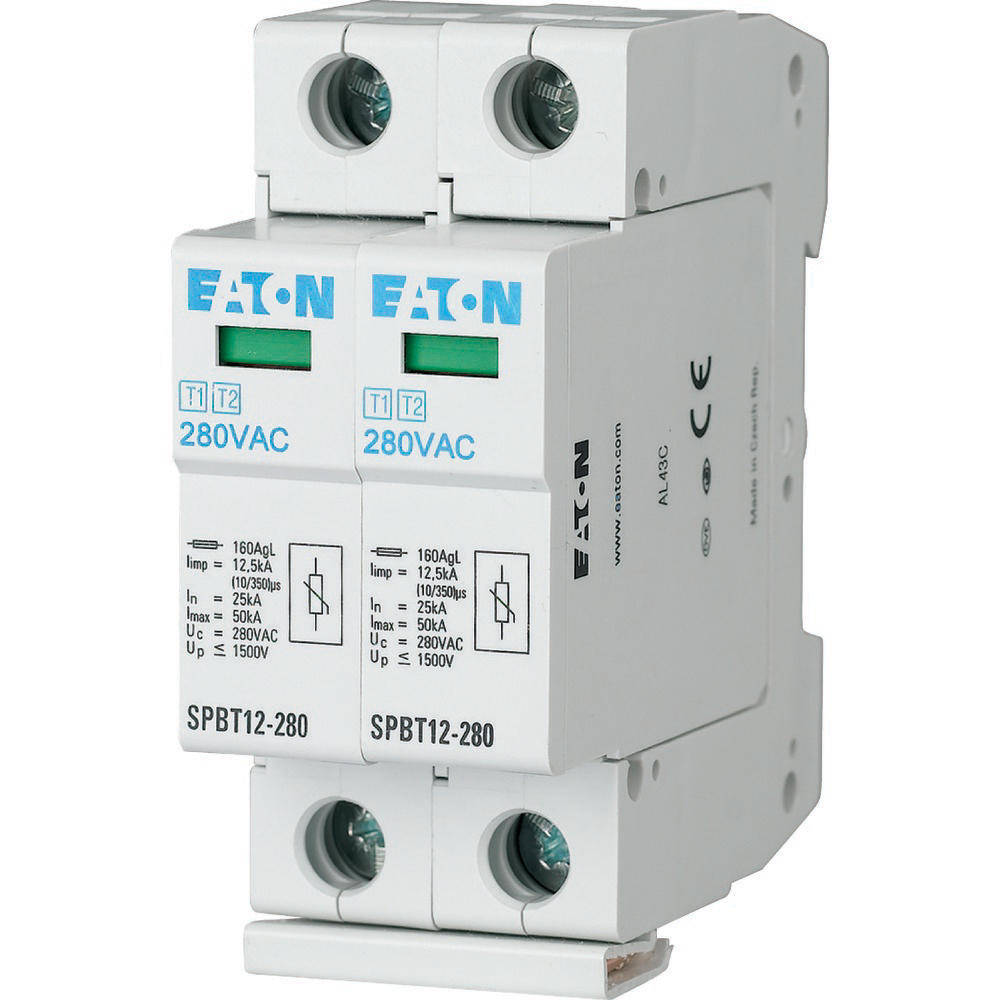

Eaton Lightning Current And Surge Arresters Kit TN-S 2P - 158309
The Eaton Industries Xpole combined surge protector is used for protecting consumer systems against transient overvoltages caused by both direct and indirect lightning strikes and switching operations. It's suitable for TN, TN-S, and other network forms with 2 poles and a 12.5kA lightning impulse current (10/350). It has a maximum continuous voltage of AC 280V and a nominal voltage of AC 280V. It's created in compliance with IEC 60364-5-53 section 534, class II as per IEC 61643-1, SPD-type T1, T2 in line with EN 61643-11, and lightning protection classes III and IV according to IEC 62305. The protector features a safety level of 1.5kV and a max overcurrent protection of 160A. It doesn't include remote signaling.
- Regular price
- £111.00
Description
The Eaton Industries Xpole combined surge protector is used for protecting consumer systems against transient overvoltages caused by both direct and indirect lightning strikes and switching operations. It's suitable for TN, TN-S, and other network forms with 2 poles and a 12.5kA lightning impulse current (10/350). It has a maximum continuous voltage of AC 280V and a nominal voltage of AC 280V. It's created in compliance with IEC 60364-5-53 section 534, class II as per IEC 61643-1, SPD-type T1, T2 in line with EN 61643-11, and lightning protection classes III and IV according to IEC 62305. The protector features a safety level of 1.5kV and a max overcurrent protection of 160A. It doesn't include remote signaling.
