Eaton M22-LED-R Front Mount LED Indicator 12-30V AC/DC - 216558
Reference:
E3WDM
Brand:
EATON INDUSTRIES
Mfr. Part:
216558

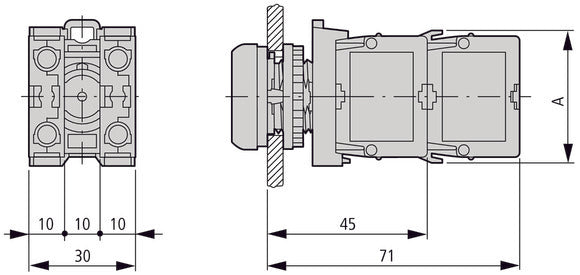

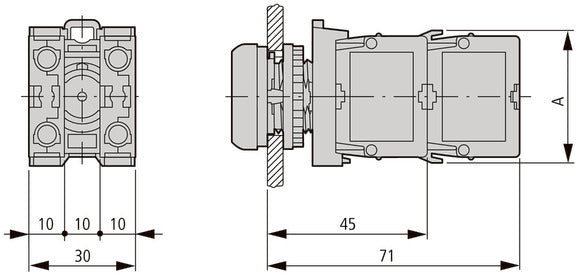

Front-mounted LED indicator element with screw terminal connections, operating at 12-30V AC/DC (50/60 Hz). Features 8-15mA operational current, 0.26W power consumption at 24V, and IP20 protection rating. Designed for control panel integration with 30mm installation depth and 10x34mm dimensions. Compliant with IEC 60947-5-1 standards.
- Regular price
- £10.26
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days
Description
Specifications
Downloads
Description
Front-mounted LED indicator element with screw terminal connections, operating at 12-30V AC/DC (50/60 Hz). Features 8-15mA operational current, 0.26W power consumption at 24V, and IP20 protection rating. Designed for control panel integration with 30mm installation depth and 10x34mm dimensions. Compliant with IEC 60947-5-1 standards.
Pros:
- Compact 30mm installation depth
- Wide voltage range 12-30V AC/DC compatibility
- 100,000+ hour operational lifespan
- Simple screw terminal mounting system
