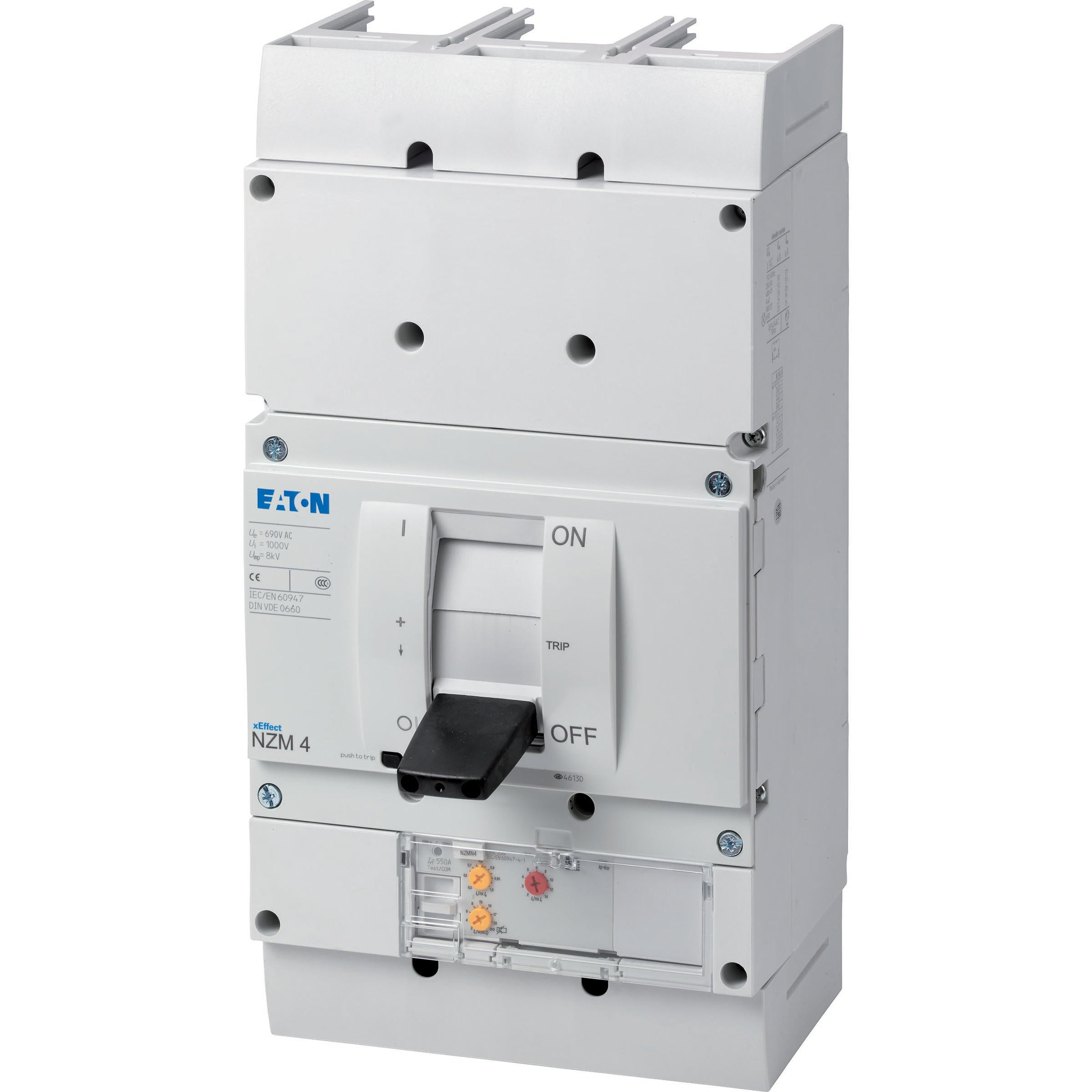

Eaton Motor Protection Circuit Breaker 3P 550A NZMH4-ME550 - 265791
The Eaton Industries MCCB motor protection switch measures 210x401x207mm, with an overload protection setting range of 275 - 550A. The device has a built-in form making it easy to install, with screw connection for the main current circuit. The device uses electronic release technology that is suitable for motor protection with phase failure sensitivity. The NZM..-ME series circuit-breakers come in four compact sizes and can withstand a nominal continuous current of 550A. The device also features r.m.s value measurement and thermal memory, and adjustable time delay setting to tackle current peaks at 6xIr and infinity (without overload release), fulfilling IEC/EN 60947-4-1, IEC/EN 60947-2 standards.
- Regular price
- £3,274.06
Description
The Eaton Industries MCCB motor protection switch measures 210x401x207mm, with an overload protection setting range of 275 - 550A. The device has a built-in form making it easy to install, with screw connection for the main current circuit. The device uses electronic release technology that is suitable for motor protection with phase failure sensitivity. The NZM..-ME series circuit-breakers come in four compact sizes and can withstand a nominal continuous current of 550A. The device also features r.m.s value measurement and thermal memory, and adjustable time delay setting to tackle current peaks at 6xIr and infinity (without overload release), fulfilling IEC/EN 60947-4-1, IEC/EN 60947-2 standards.
