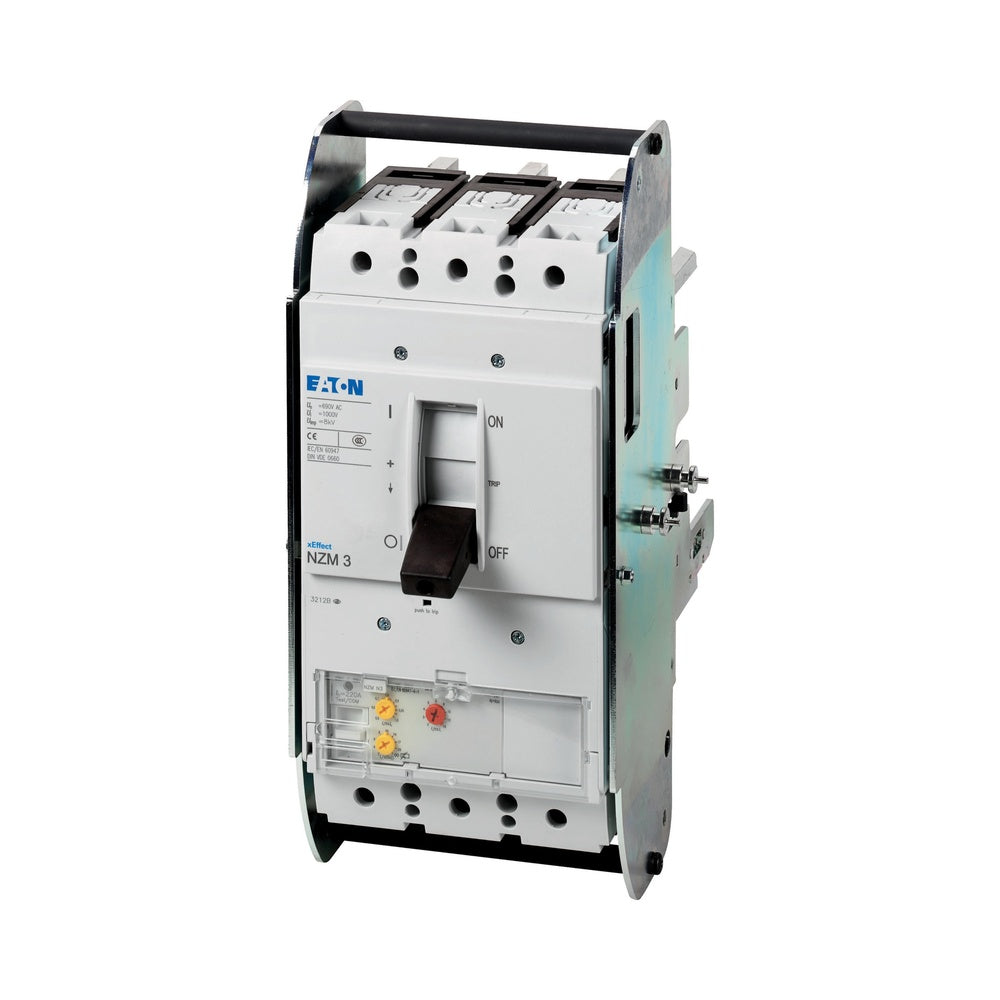

Eaton NZMH3-ME450-AVE 3P 450A Motor Circuit Breaker Withdrawable Unit - 110857
The Eaton Industries MCCB motor protection circuit breaker, with dimensions of 185x260x346mm, features an overload setting range of 225 - 450A and a nominal continuous current Iu of 450A. The main circuit connection is a screw connection, with an electronic shut-off technology. It comes in just four compact sizes, suitable for the IEC market, thus providing flexibility in mounting due to modular function groups. It has an electronic release for motor protection with phase failure sensitivity and complies with IEC/EN 60947-4-1, IEC/EN 60947-2 standards. It uses RMS value measurement and thermal memory, as well as an adjustable delay time setting to address current peaks of tr: 2-20 at 6xIr and infinity (without overload release).
- Regular price
- £3,270.43
Description
The Eaton Industries MCCB motor protection circuit breaker, with dimensions of 185x260x346mm, features an overload setting range of 225 - 450A and a nominal continuous current Iu of 450A. The main circuit connection is a screw connection, with an electronic shut-off technology. It comes in just four compact sizes, suitable for the IEC market, thus providing flexibility in mounting due to modular function groups. It has an electronic release for motor protection with phase failure sensitivity and complies with IEC/EN 60947-4-1, IEC/EN 60947-2 standards. It uses RMS value measurement and thermal memory, as well as an adjustable delay time setting to address current peaks of tr: 2-20 at 6xIr and infinity (without overload release).
